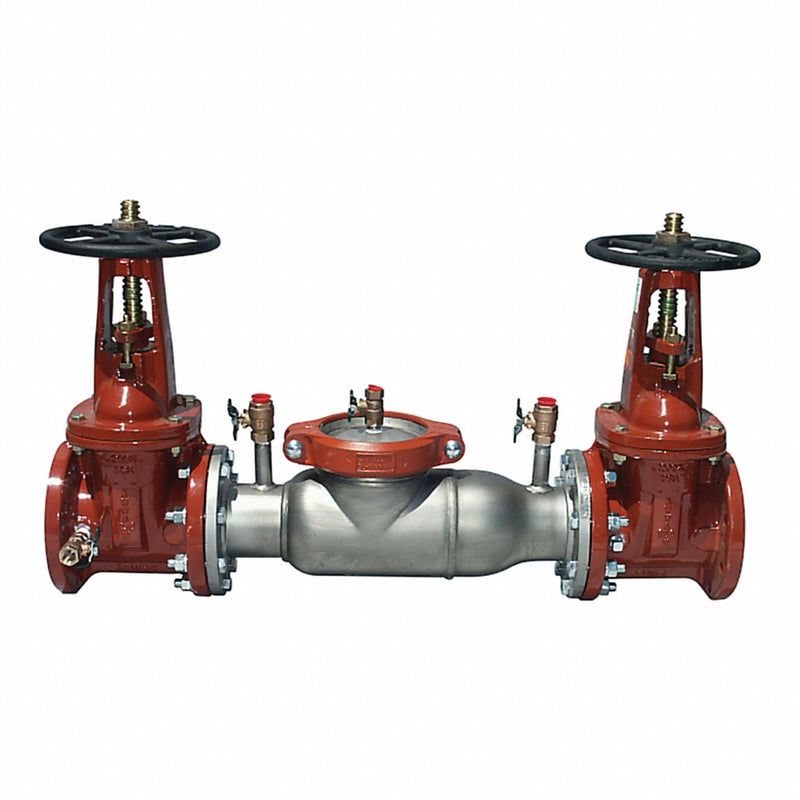

Watts 774-OSY Double Check Valve Assembly, 3 in Pipe, Flange x Flange, Stainless Steel, OSY Gate Shutoff, Short Lay Length, 175 psi

Watts 774-OSY Double Check Valve Assembly, 3 in Pipe, Flange x Flange, Stainless Steel, OSY Gate Shutoff, Short Lay Length, 175 psi

UPC: 098268878172 | Harmonization / Schedule B : 8481.30.1090

Country of Origin: United States | Shipping Weight: 258 lbs

$8,373.79 - $8,373.79
$8,373.79
$8,373.79 - $8,373.79
$8,373.79

Double Check Valve Assembly, Series Watts 774, Size 3 in., Connection Flanged, Body Material Stainless Steel, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 7-1/2 in., Length 38 in., Height 22-5/8 in., Features OSY Shutoff, Short Lay Length, Standards AWWA C510-92, CSA B64.5, Compliance ASSE 1015, FM Approved (4 in. to 10 in. OSY Only) UL Classified (OSY Only)

Body Material Stainless steel
Temp. Range 33 Degrees to 110 Degrees F
Compliance ASSE 1015, FM Approved (4 in to 10 in OSY Only) UL Classified (OSY Only)
Standards ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, FM
Max. Pressure 175 psi
Max. Temp. 110 Degrees F
Series Watts 774
Features OSY Shutoff, Short Lay Length
Connection Flanged Joint
Number of Test Ports 4
Manufacturer Warranty 1 yr
Operating Temperature - Minimum 33 Degrees F
Includes Freeze Sensor No Freeze Sensor
Connection Type - Side 1 Flange
Spring Material Stainless Steel
Check Mechanism Material Thermoplastic
Hazard Protection Level Low Health Hazard
Includes Strainer No Strainer
Shut-Off Valve Included OSY Gate Valve
Connection Type - Side 2 Flange
For Media Water
Operating Temperature - Maximum 110 Degrees F
Mounting Orientation Horizontal, Vertical
Includes Flow Meter No Flow Meter
Backflow Preventer Type Double Check Assembly (DC)
Flow 600 gpm
