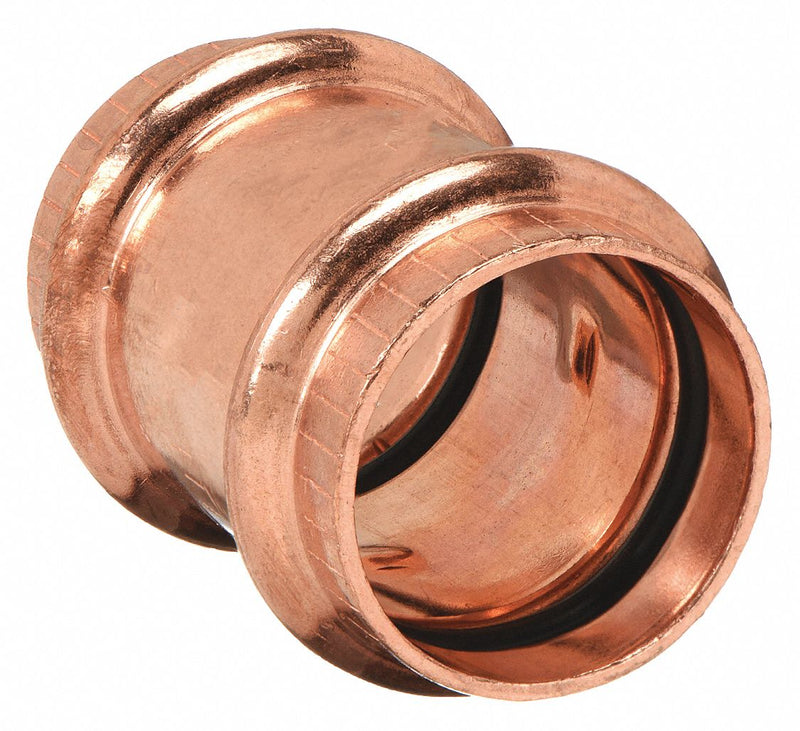

Viega Propress 78067 Crimp Coupling Fitting

Viega Propress 78067 Crimp Coupling Fitting, Straight, 1 1/2 in CTS x 1 1/2 in CTS, Press-fit x Press-fit, Copper

UPC: 691514780672 | Harmonization / Schedule B : 7412.20.0000

Country of Origin: Germany | Shipping Weight: 0.51 lbs

$31.57 - $31.57
$31.57
$31.57 - $31.57
$31.57

These press tube fittings are suitable for plumbing applications with potable water. They crimp onto tubing and have a sealing O-ring to ensure a secure, leaktight connection.

Country of Origin Germany
Tube Size 1-1/2 in x 1-1/2 in
Pipe Size - Pipe Fitting 1-1/2 in x 1-1/2 in
Pipe Size (Fittings) 1-1/2" x 1-1/2"
Fitting Side A Copper Tube Size 1 1/2 in
Fitting Side B Copper Tube Size 1 1/2 in
Overall Length 3 in
Fitting Side 2 Copper Tube Size 1 1/2 in
Fitting Side 1 Copper Tube Size 1 1/2 in
Tube Fitting Material Copper
Specific Fitting Shape Straight Coupling
Fitting Connection Type Press x Press
Temp. Range 0 Degrees to 250 Degrees F
Basic Pipe Fitting Material Metal
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Standards ASTM B75, ASTM B88
Specific Pipe Fitting Shape Coupling
Pipe Fitting Connection Type Press x Press
Max. Pressure 200 psi
Basic Pipe Fitting Shape Coupling
Fitting Shape Straight
Includes Center Stop Dimple Center Stop
Maximum Operating Temperature 250 Degrees F
Maximum Operating Pressure 200 psi
Fitting Side B Connection Type Press-Fit
Minimum Operating Temperature 0 Degrees F
Fitting Material Copper
O-Ring Material EPDM
Fitting Side A Connection Type Press-Fit
Application Potable Water
Operating Pressure - Maximum 200 psi
Center Stop Type Dimple Center Stop
Operating Temperature - Minimum 0 Degrees F
Fitting Side 1 Connection Type Press-fit
Operating Temperature - Maximum 250 Degrees F
Fitting Side 2 Connection Type Press-fit
Connector Type Coupling
For Media Type Potable Water
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
