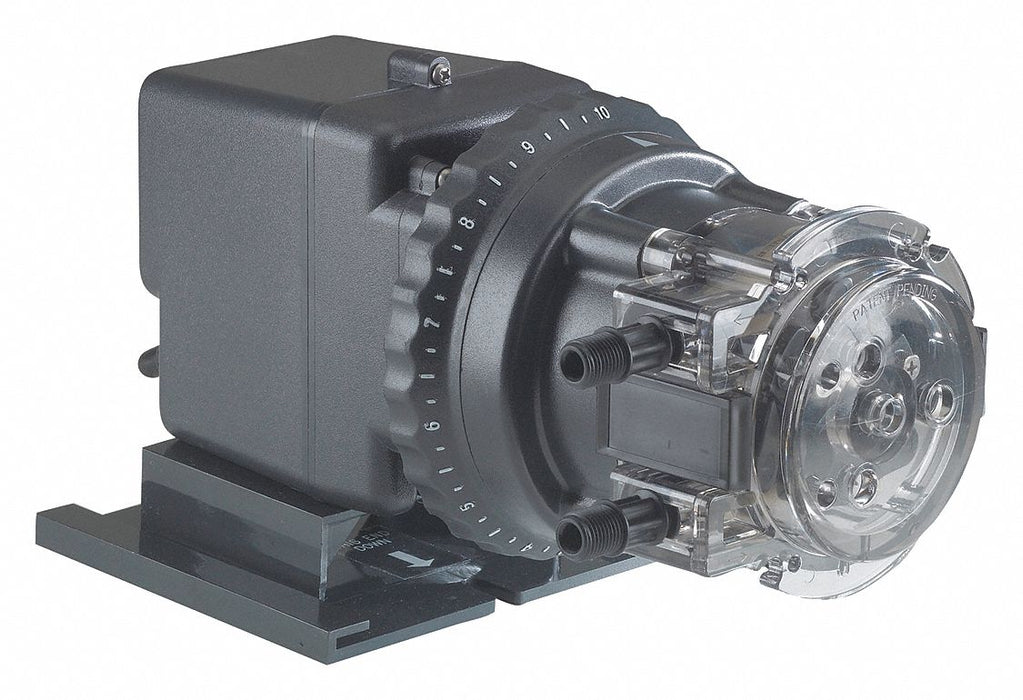

Stenner 45MJH2A1STAA Peristaltic Chemical Metering Pump

Stenner 45MJH2A1STAA Peristaltic Chemical Metering Pump, 120V AC, 1/30 HP, 10 gpd Max Flow, Santoprene

UPC: | Harmonization / Schedule B : 8413.81.0040

Country of Origin: United States | Shipping Weight: 8.45 lbs

$1,244.14 - $1,244.14
$1,244.14
$1,244.14 - $1,244.14
$1,244.14

Peristaltic Chemical Metering Pump, Control Programs Manual Control, Discharge Connection Size 1/4 in, Discharge Connection Type NPT, Flow Rate (Maximum) 10 gpd, Flow Rate (Minimum) 0.5 gpd, Horsepower (Maximum) 1/30 hp, Intake Connection Size 1/4 in, Intake Connection Type NPT, Media Temperature (Maximum) 125 Degrees F, Media Temperature (Minimum) 32 Degrees F, Nameplate Voltage 120V AC, Number of Feeds 1, Pressure (Maximum) 100 psi, Reproducibility +/-2.0 Percent, Tubing Material Santoprene.

Flow Rate Output Control Adjustable
Control Programs Manual Control
Flow Rate (Minimum) 0.5 gpd
Flow Rate (Maximum) 10 gpd
Turn Down Ratio 20:1
Reproducibility ±2.0%
Number of Feeds 1
Pressure (Maximum) 100 psi
Viscosity (Maximum) 1,500 cps
Nameplate Voltage 120V AC
Phase Single
Motor Type Shaded Pole
Motor Speed (Maximum) 44 RPM
Horsepower (Maximum) 1/30 hp
Duty Cycle Continuous
Electrical Connection Type Plug-In
Cord Length 6 ft
Intake Connection Size 1/4 in
Intake Connection Type NPT
Discharge Connection Size 1/4 in
Discharge Connection Type NPT
Priming Self-Priming
Tubing Material Santoprene
Roller Material Polyethylene
Head Material Polycarbonate/Santoprene
Housing Material Polycarbonate
Fitting Material Polypropylene/PVC
Media Temperature (Minimum) 32 °F
Media Temperature (Maximum) 125 °F
Ambient Temperature (Maximum) 125 °F
Overall Height 6 in
Overall Length 10.6 in
Overall Width 5.3 in
Standards cCSAus; CE; ETL; UL 96F0
Country of Origin United States
