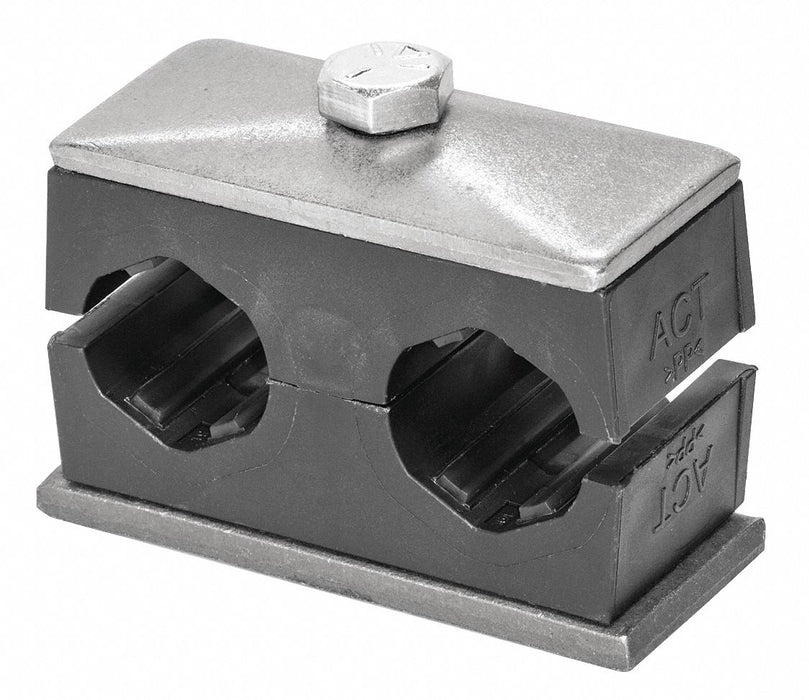

STAUFF SP-109.5/09.5 Twin Beta Clamp Weld-On

Stauff SP-109.5/09.5-ACT-GD-AS-U-W5-K-642012 Twin Beta Clamp Kit, 9-1/2 mm Tube OD, Smooth Bore, 316 Stainless Steel, Polypropylene Cushion, Weld-On, 2 Lines

UPC: | Harmonization / Schedule B : 7326.90.8688

Country of Origin: Germany | Shipping Weight: 0.2 lbs

$34.55 - $34.55
$34.55
$34.55 - $34.55
$34.55

Beta Clamp, Clamp Bore Style Smooth, Clamp Material 316 Stainless Steel, Clamp Material Finish Elastomer, Clamp Type Weld Mount Twin Assembly, Cushion Material Polypropylene, For Maximum Outside Diameter 9-1/2 mm, For Number of Lines 2

Bore Style Smooth
Clamp Material 316 Stainless Steel
Clamp Material Finish Elastomer
Clamp Type Weld Mount Twin Assembly
Cushion Material Polypropylene
For Maximum Outside Diameter 9-1/2 mm
For Number of Lines 2
Hardware Material 316 Stainless Steel
Includes Clamp Set, Cover Plate, Weld Plate, Hex Head Bolts
Insert Material Polypropylene
Maximum Operating Pressure 2,000 psi
Maximum Operating Temperature 194 Degrees F
Minimum Operating Temperature -13 Degrees F
Mount Type Weld-On
Resistance Properties Corrosion Resistant
Series Twin
Standards API RP 552, DIN 3015-1, NACE SP 0108-2008
System of Measurement Metric
Type Anti-Corrosion Weld Mount Twin Clamp
Country of Origin Germany
