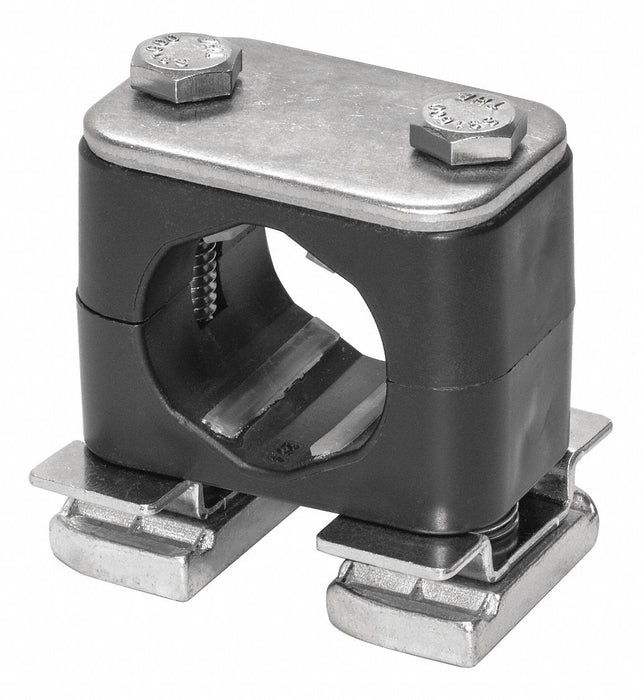

STAUFF CRA-325.4 Beta Clamp Rail-Mount

Stauff CRA-325.4-ACT-DP-AS-U-W5-K-642012 Beta Clamp Kit, 25-3/8 mm Tube OD, Smooth Bore, 316 Stainless Steel, Polypropylene Cushion, Rail-Mount

UPC: | Harmonization / Schedule B : 7326.90.8688

Country of Origin: Germany | Shipping Weight: 0.35 lbs

$58.96 - $58.96
$58.96
$58.96 - $58.96
$58.96

Beta Clamp, Clamp Bore Style Smooth, Clamp Material 316 Stainless Steel, Clamp Material Finish Elastomer, Clamp Type Rail Mount Assembly, Cushion Material Polypropylene, For Maximum Outside Diameter 25-3/8 mm, For Number of Lines 1

Bore Style Smooth
Clamp Material 316 Stainless Steel
Clamp Material Finish Elastomer
Clamp Type Rail Mount Assembly
Cushion Material Polypropylene
For Maximum Outside Diameter 25-3/8 mm
For Number of Lines 1
Hardware Material 316 Stainless Steel
Includes (1) Rail Nut, (1) Hex Head Bolt, Clamp Set, Cover Plate
Insert Material Polypropylene
Maximum Operating Pressure 2,000 psi
Maximum Operating Temperature 194 Degrees F
Minimum Operating Temperature -13 Degrees F
Mount Type Rail-Mount
Resistance Properties Corrosion Resistant
Series Standard
Standards API RP 552, DIN 3015-1, NACE SP 0108-2008
System of Measurement Metric
Type Anti-Corrosion Rail Mount Standard Clamp
Country of Origin Germany
