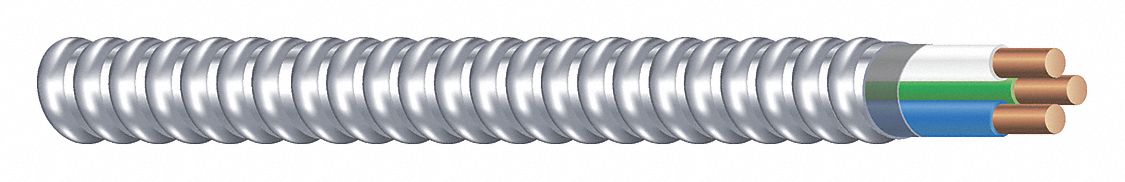

Southwire 68948901 Armorlite Metal Clad Armored Cable Blue/White 12 AWG 250 ft

Southwire 68948901 Armorlite Metal Clad Armored Cable, MC, 12 AWG 2C+G, 250 ft, Blue/White Conductors, Aluminum Jacket, 600V

UPC: | Harmonization / Schedule B : 8544.49.3080

Country of Origin: United States | Shipping Weight: 26.1 lbs

$388.92 - $388.92
$388.92
$388.92 - $388.92
$388.92

Standard metal-clad building cables consist of insulated conductors protected by an interlocked metal jacket. They are used for various industrial, commercial, and residential power distribution applications. MC (metal-clad) cable is electrical wiring with insulated conductors enclosed in a corrugated metal jacket. Its jacket offers robust protection against impacts, abrasions, and mechanical damage. It's commonly used to carry power in commercial and residential applications where physical wire damage is a concern.

Series Armorlite
Trade Designation MC
Trade Designation - Conductors THHN
Voltage 600 V
Overall Length 250 ft
Packaging Coil
Cable Jacket Profile Type Standard
Jacket Color Silver
Jacket Material Aluminum
Number of Conductors 2
Conductor Size 12 AWG
Conductor Material Copper
Conductor Insulation Color Blue; White
Conductor Insulation Material PVC
Conductor Design Solid
Number of Ground Conductors 1
Grounding Conductor Size 12 AWG
Grounding Conductor Material Copper
Grounding Conductor Insulation Color Green
Number of Neutrals 0
Shielding Shielded
Shielding Material Aluminum
Nominal Outside Diameter 0.48 in
Temperature Rating - Maximum Dry 194 °F
Hazardous Location Specification Class I, Div 2, Group A, B, C, D; Class II, Div 2, Group E, F, G; Class III, Div 1
Standards UL Listed
Country of Origin United States
