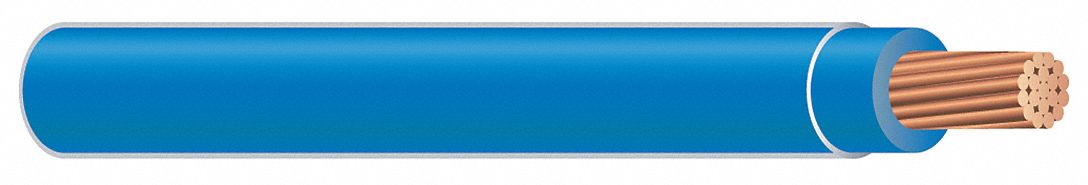

Southwire 37104771 XHHW Building Wire, Copper, 12 AWG, 1 Conductor, Stranded, Blue, 500 ft, 600V, Spool

Southwire 37104771 XHHW Building Wire, Copper, 12 AWG, 1 Conductor, Stranded, Blue, 500 ft, 600V, Spool

UPC: 032886913099 | Harmonization / Schedule B : 8544.49.9000

Country of Origin: United States | Shipping Weight: 13.8 lbs

$295.95 - $295.95
$295.95
$295.95 - $295.95
$295.95

Building Wire, Trade Designation XHHW, Wire Size 12 AWG, Wire Color Blue, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.15 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 7

Trade Designation XHHW
Conductor Material Copper
Wire Size 12 AWG
Number of Conductors 1C
Wire Color Blue
Conductor Design Stranded
Number of Strands 7
Conductor Insulation Material Nylon
Voltage 600V AC
Temperature Rating 194°F
Minimum Bend Radius 5/8 in
Nominal Outside Diameter 0.15 in
Overall Length 500 ft
Packaging Spool
Standards UL Listed
Fire Resistance Rating Not Rated
Application Branch Circuit Wiring, Feeder Wiring, Raceways for Service, Wet or Dry Conduit
Country of Origin United States
