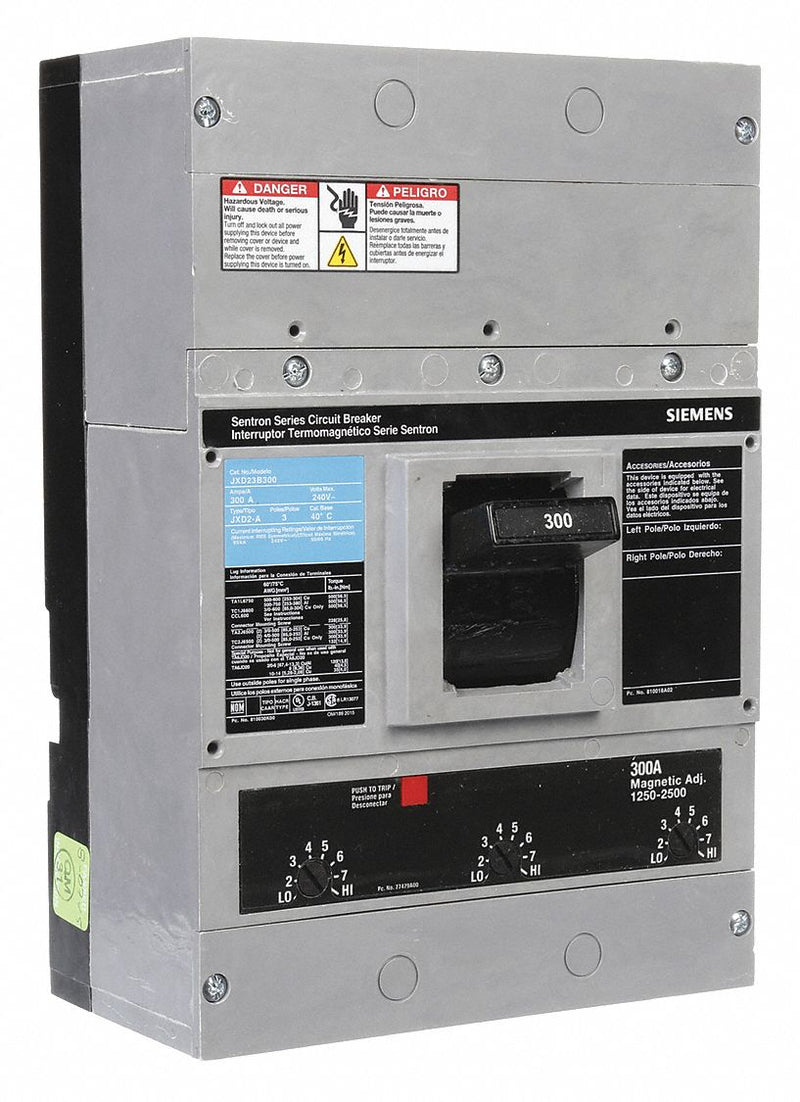

Siemens JXD23B300 Molded Case Circuit Breaker 300A 240V 65kA

Siemens JXD23B300 Molded Case Circuit Breaker, 300 A, 240V AC, 65kA, 3 Pole, JD Frame, Thermal Magnetic

UPC: | Harmonization / Schedule B : 8536.20.0040

Country of Origin: Mexico | Shipping Weight: 18.2 lbs

$10,419.42 - $10,419.42
$10,419.42
$10,419.42 - $10,419.42
$10,419.42

JD-frame Siemens molded case circuit breakers are rated up to 400A and 240VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in enclosures, switchboards, and panelboards. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.

Series JXD2-A
Amps 300 A
AC Voltage Rating 240V AC
Max. AIR Rating 65kA at 240V AC
Number of Poles 3
Phase Three
Phase Connection ABC
Circuit Breaker Type Standard
Trip Type Thermal Magnetic
Instantaneous Trip Fixed
High Amp Trip Setting 300 A
Low Amp Trip Setting 300 A
Terminal Connection Lug
Frame Size 400A/JD
Circuit Breaker Actuator Toggle
Circuit Breaker Mounting Style Free Standing Lug In
Max. Wire Size 500 MCM
For Use With SB Switchboards Without Lugs, Sentron Panelboards
Height 11 in
Width 7.5 in
Depth 4 in
Standards HACR Rated, UL Listed
Country of Origin Mexico
