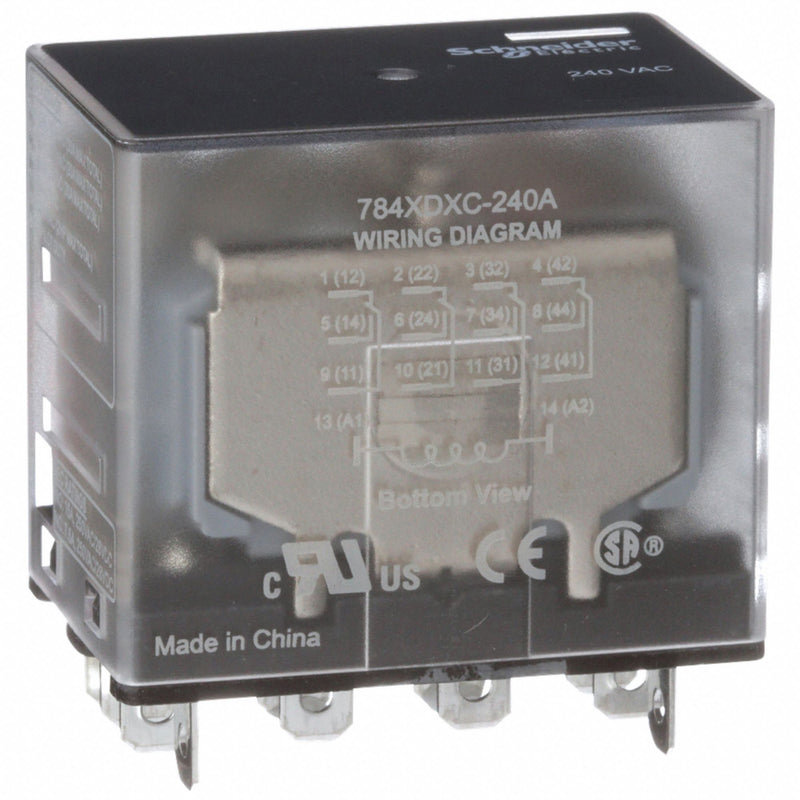

Schneider Electric 784XDXC-240A General Purpose Relay, Socket Mounted, 15 A Current Rating, 240V AC, 4PDT, F Socket

Schneider Electric 784XDXC-240A General Purpose Relay, Socket Mounted, 15 A Current Rating, 240V AC, 4PDT, F Socket

UPC: | Harmonization / Schedule B : 8536.49.0055

Country of Origin: China | Shipping Weight: 0.15 lbs

$27.78 - $27.78
$27.78
$27.78 - $27.78
$27.78

General Purpose Relay, Base Shape Square, Coil Voltage 240V AC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 14, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V, Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.37 in

Mounting Style Socket
Electrical Connection Faston Terminal
Base Shape Square
Number of Pins 14
Coil Voltage 240V AC
Current Rating 15 A
Contact Form 4PDT
Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC)
Socket Code F
Socket Mfr. No. 70-784D14-1
Features Gold Flashed Contacts
Green Environmental Attribute RoHS 2011/65/EU Compliant
Power Consumption - Relay 1.5 VA
Contact Material Gold Flashed Silver Alloy
Standards CE Certified, CSA Certified, UL Listed
Status Indicator Mechanical Flag
Operating Current 10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Resistance Properties Shock-Resistant, Vibration-Resistant
Horsepower @ 240V AC 3/4 hp
Motor Rated Yes
Weight 2.5 oz
Response Time 20 msec
Coil Resistance 8,000 ohm
Maximum Switching Voltage 250V AC, 300V DC
IP Rating IP40
Input Voltage 240V AC
Minimum Operating Temperature -40 Degrees F
Push-To-Test Method No Button
Minimum Switching Current 10 mA
Horsepower @ 120V AC 1/2 hp
Dielectric Strength 1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Series 784 Series
Power Consumption 1.6 W, 2.5 VA
Frequency 50/60 Hz
Mechanical Operating Durability 10,000,000
Maximum Operating Temperature 131 Degrees F
For Use With Automation Panels and Controls
Electrical Operating Durability 100,000
Vibration Resistance +/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Voltage Range 0.8...1.1 Un AC/DC
Ambient Air Temperature for Operation -40 to 131°F (-40 to 55°C)
Product Certifications UL; CE; CSA
Connections Terminals Faston terminals
Contact Composition 4 NO + 4 NC
Drop-out Voltage Threshold >= 0.15 Uc AC; >= 0.1 Uc DC
Motor Power HP 0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz
Shock Resistance 15 gn in operation
Power consumption in W 1.6 W DC
Ambient Air Temperature for Storage -40 to 185°F (-40 to 85°C)
Product Range Legacy
Operating Time 20 ms operating; 20 ms tripping
Power consumption in VA 2.5 VA AC
Type Plug-In
Country of Origin China
