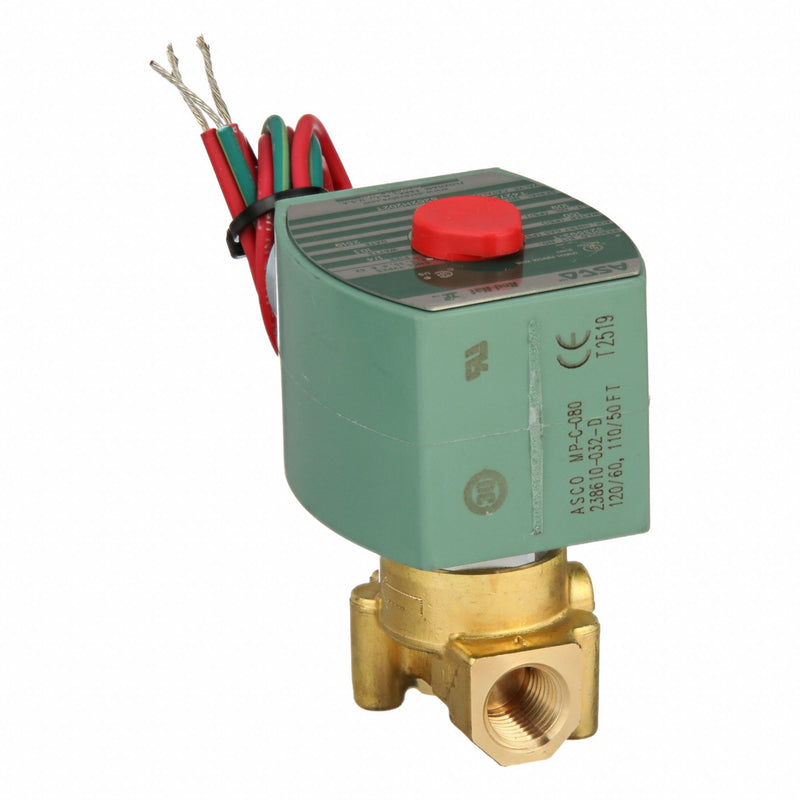

Redhat (ASCO) 8262H202T High-Flow Solenoid Valve, 2-Way 2-Position Normally Closed, 1/4 in NPT, Brass Body, 120 V AC, 10.1 W, Direct Acting

Redhat (ASCO) 8262H202T High-Flow Solenoid Valve, 2-Way 2-Position Normally Closed, 1/4 in NPT, Brass Body, 120 V AC, 10.1 W, Direct Acting

UPC: | Harmonization / Schedule B : 8481.80.9005

Country of Origin: Mexico | Shipping Weight: 1.39 lbs

$120.73 - $120.73
$120.73
$120.73 - $120.73
$120.73

ASCO Redhat 8262H202T high-flow 2-way normally-closed solenoid valve. Direct-acting design with brass body and PTFE seal. 1/4 in NPTF inlet/outlet, 5/32 in orifice, 0.52 Cv. 120 V AC 50/60 Hz, 10.1 W. For air, inert gases, light oil, and water. Max pressure differentials: 150 psi water, 210 psi air/inert gas, 109 psi light oil. Fluid temp up to 180°F. Mount horizontal or vertical. Includes seal and coil.

For Media Air, Inert Gases, Light Oil, Water
Application Boilers, Burners, Car Wash Equipment, Compressors, Dishwashing and Laundry Equipment, Food Processing, Pumps
Valve Type High Flow
Mounting Orientation Horizontal or Vertical
Operation Type Direct Acting
Valve Ways 2-Way
Valve Positions 2-Position
Body Material Brass
Seal Material PTFE
Nominal Pipe Size 1/4 in
Inlet Connection Type NPTF
Outlet Connection Type NPTF
Voltage 110V AC, 120V AC
Wattage 10.1 W
Frequency 50 Hz, 60 Hz
Electrical Connections 1/2" Conduit w/ 18" Leads
Coefficient of Volume (Cv) 0.52
Orifice Diameter 5/32 in
Min. Operating Pressure Differential 0 psi
Max. Operating Pressure Differential - Water 150 psi
Max. Operating Pressure Differential - Light Oil 109 psi
Max. Operating Pressure Differential - Air/Inert Gas 210 psi
Max. Fluid Temperature 180°F
Min. Ambient Temperature 14°F
Max. Ambient Temperature 140°F
Includes Seal Yes
Includes Coil Yes
