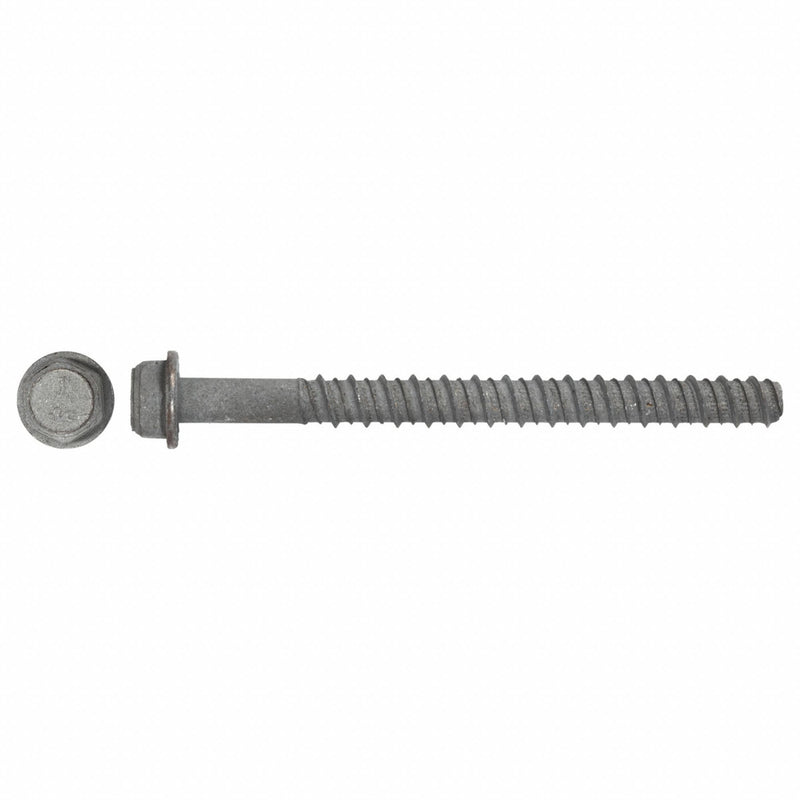

Red Head LDT-1260 Screw Anchor

Red Head LDT-1260 Large Diameter Tapcon Screw Anchor, 6 in Overall Lg, 1/2 in Dia, Steel, External Hex, 20 PK

UPC: | Harmonization / Schedule B : 7318.14.5080

Country of Origin: United States | Shipping Weight: 6.35 lbs

$158.14 - $158.14
$158.14
$158.14 - $158.14
$158.14

Heavy-duty hex-head screw anchors install into concrete and other masonry surfaces and secure heavy loads. They feature large, hardened threads and shanks that bite into the mounting surface and secure higher loads than standard hex-head screw anchors.

System of Measurement Inch
Overall Length 6 in
Anchor Diameter 1/2 in
Compatible Material Concrete
Material Steel
Material Grade/Class Grade 5
Head Type Hex
Drive Type External Hex
Head Width 0.75 in
Drill Bit Size 7/16 in
Tip Type Self-Threading
Sub-brand Large Diameter Tapcon
Maximum Material Thickness 4 in
Maximum Ultimate Shear Strength 7,380 lb
Maximum Ultimate Tension Strength 4,236 lb
Minimum Installation Depth 2-1/2 in
Edge Distance 2-1/4 in
Display Qty 20 PK
Material Quality Standards ASTM B633; ASTM B695
Country of Origin United States
