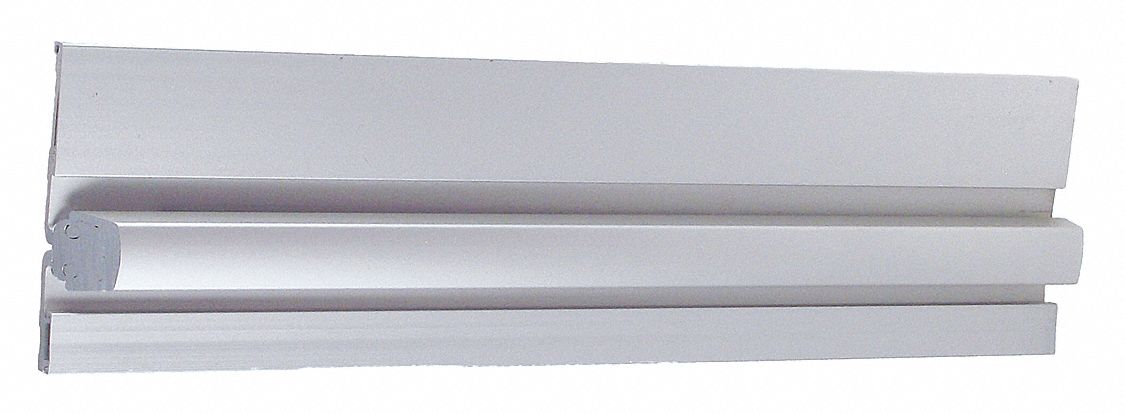

Pemko CFS95CP-HD1-HT-RH Heavy Duty Continuous (Piano) Hinge, Bronze, 95 in, Full Surface Center Pivot, Right Hand, Hospital Tip, Grade 1, 540 lb Cap, UL10C

Pemko CFS95CP-HD1-HT-RH Heavy Duty Continuous (Piano) Hinge, Bronze, 95 in, Full Surface Center Pivot, Right Hand, Hospital Tip, Grade 1, 540 lb Cap, UL10C

UPC: | Harmonization / Schedule B : 8302.10.6030

Country of Origin: United States | Shipping Weight: 9 lbs

$547.03 - $547.03
$547.03
$547.03 - $547.03
$547.03

Pemko CFS95CP-HD1-HT-RH heavy duty Grade 1 continuous (piano) hinge, bronze material with Clear Anodized / Satin Aluminum finish. 95 in length, 83 in frame leaf height, 95 in door leaf height. 1-1/4 in frame leaf width, 1-3/8 in door leaf width, 0.125 in leaf thickness, 2 in knuckle height, 2-7/8 in overall width. Full Surface Center Pivot mounting, Right Hand orientation, Hospital Tip pin, geared hinge. 540 lb load capacity, 180° range of motion, UL10C fire rated, ANSI/BHMA A156.26. 12 holes per leaf, hardware included. Ligature resistant.

Brand Pemko
Material Bronze
Finish Satin Aluminum, Clear Anodized
Frame Leaf Width 1-1/4 in
Door Leaf Width 1-3/8 in
Overall Height 83 in
Length 95 in
Door Leaf Height 95 in
Frame Leaf Thickness 0.125 in
Door Leaf Thickness 0.125 in
Overall Width 2-7/8 in
Overall Knuckle Height 2 in
Number of Holes per Leaf 12
Load Capacity 540 lb
Range of Motion - Maximum 180 Degrees
Pin Material Geared
Pin Type Hospital Tip
Mounting Full Surface Center Pivot
Hand Orientation Right Hand
Includes Hardware Hardware Included
Standards ANSI/BHMA A156.26; UL Certified
UL Fire Rating UL10C
Fire Rating 3 hr
Ligature Resistant Yes
Features Hospital Tip; Heavy Duty, Grade 1
