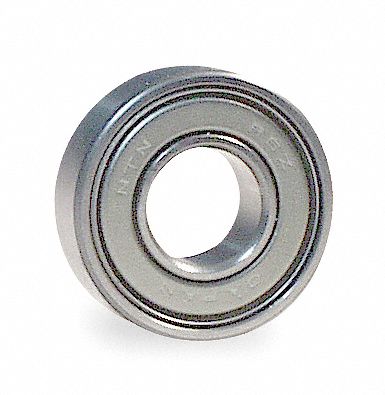

NTN 6003ZZC3 Radial Ball Bearing 17 mm Bore

NTN 6003ZZC3/L627 Radial Ball Bearing, Double Shield, 17 mm Bore, 35 mm OD, 10 mm Wide

UPC: | Harmonization / Schedule B : 8482.10.5048

Country of Origin: Multiple | Shipping Weight: 0.1 lbs

$32.44 - $32.44
$32.44
$32.44 - $32.44
$32.44

Radial Ball Bearing, Bearing Industry Number 6003, Bore Diameter 17 mm, Closure Double Shielded, Outer Ring Width 10 mm, Outside Diameter 35 mm, Ring Material Alloy Steel, System of Measurement Metric, Cage Material Steel, Ball Material Alloy Steel, Cage Type Pressed, Dynamic Radial Load Capacity 7,550 N, Fillet Radius 0.3 mm, Finish Chrome Plated, Includes Retaining Ring No, ISO Rating Class 0, Lubricant Material SRI 2

Bearing Type Shielded
Single Row/Double Row Single Row
Seal/Shield Type Double Shielded
Cage Material Steel
Temp. Range -20 Degrees to 250 Degrees F
Shield Material Metal
Static Load Capacity 755 lb
Lubrication SRI#2 Grease
Dynamic Load Capacity 1,530 lb
Ball Material Alloy Steel
Minimum Temperature -40 Degrees C
Maximum Temperature 120 Degrees C
Finish Chrome Plated
Maximum Speed 20,000 RPM
Static Radial Load Capacity 3,350 N
Cage Type Pressed
Number of Rows One
Dynamic Radial Load Capacity 7,550 N
Lubricant Material SRI 2
Includes Retaining Ring No
Ring Material Alloy Steel
Bearing Industry Number 6003
ISO Rating Class 0
Retaining Ring Groove No
System of Measurement Metric
Closure Double Shielded
Type Shielded
Country of Origin Multiple
