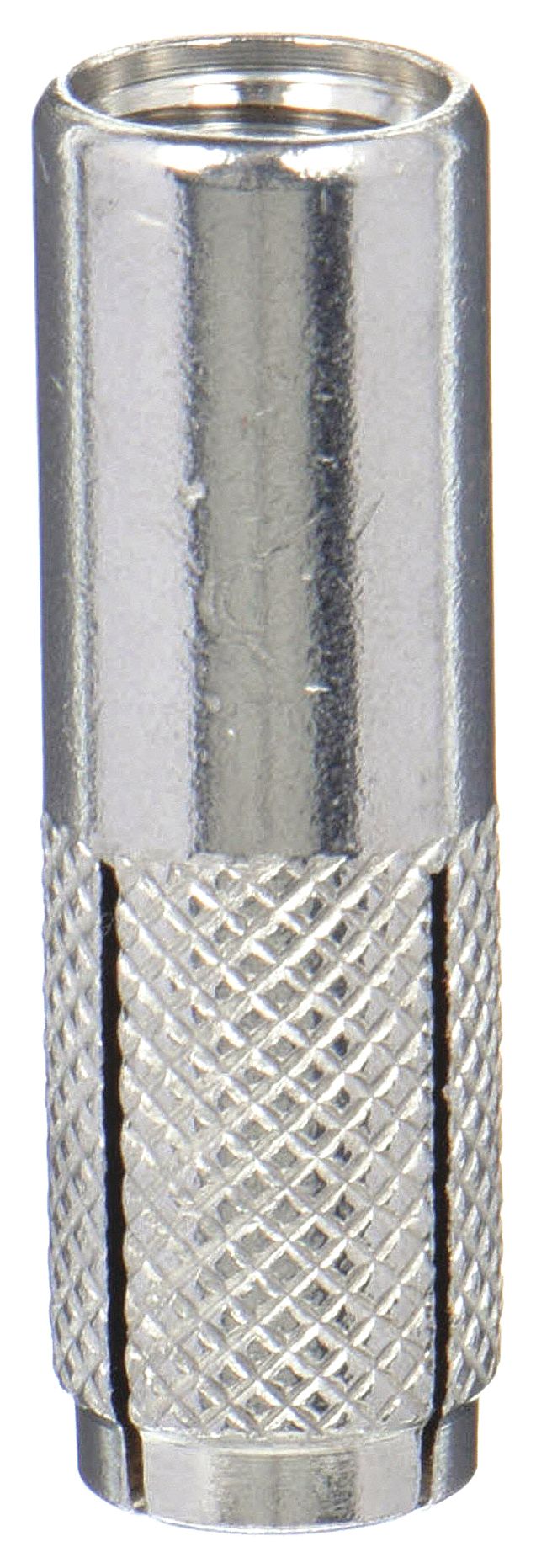

MKT Fastening 1338SS6 Drop-In Anchor 25 PK

MKT Fastening 1338SS6 Drop-In Anchor, 3/8 in-16, 1-9/16 in L, 316 Stainless Steel, 25 PK

UPC: | Harmonization / Schedule B : 7316.00.0000

Country of Origin: Taiwan | Shipping Weight: 1.63 lbs

$267.69 - $267.69
$267.69
$267.69 - $267.69
$267.69

Drop-In Anchor, Anchor Diameter 1/2 in, Overall Length 1 9/16 in, Thread Size 3/8 In.-16, Thread Depth 0.72 in, Thread Type Coarse, Material Stainless Steel, Finish Plain, Flange Style Flush, Drill Bit Size 1/2 in, Minimum Hole Depth 1 9/16 in, Ultimate Shear Strength (4,000 psi Concrete) 3,714 lb, Maximum Ultimate Shear Strength 3,714 lb, Ultimate Tension Strength (4,000 psi Concrete) 4,824 lb, Maximum Ultimate Tension Strength 4,824 lb, System of Measurement Inch, Bolt or Rod Size 3/8 in

For Use In Concrete
Sub-Brand SUP-R-DROP
Material 316 stainless steel
Finish Plain
Meets/Exceeds GSA Spec FF-S-325 Group VIII Type 1
Allowable Shear (Lbs.) 929 lb
Ultimate Tension in 3000 PSI Concrete (Lb.) 4,391 lb
Agency Compliance UL/FM
Drop-In Anchor Type Non-Flange
Material Grade 316
Ultimate Shear in 3000 PSI Concrete (Lb.) 3,714 lb
Allowable Tension (Lbs.) 1098 lb
Ultimate Shear @ 4000 psi 3,714 lb
Ultimate Tension @ 4000 psi 4,824 lb
Thread Type Coarse
Material Grade/Class 316
Industry Standards FM Approved, GSA Spec FF-S-325, UL Listed
Maximum Ultimate Tension Strength 4,824 lb
Features Knurled Body, Slotted Body
Series Sup-R Drop
Ultimate Tension Strength (4,000 psi Concrete) 4,824 lb
Compatible Material Concrete
Minimum Ultimate Tension Strength 3,957 lb
Manufacturer Location Made in USA
Removable Permanent
Ultimate Shear Strength (4,000 psi Concrete) 3,714 lb
Installation Method Drive Tool
System of Measurement Inch
Flange Style Flush
Maximum Ultimate Shear Strength 3,714 lb
Country of Origin Taiwan, Province of China
