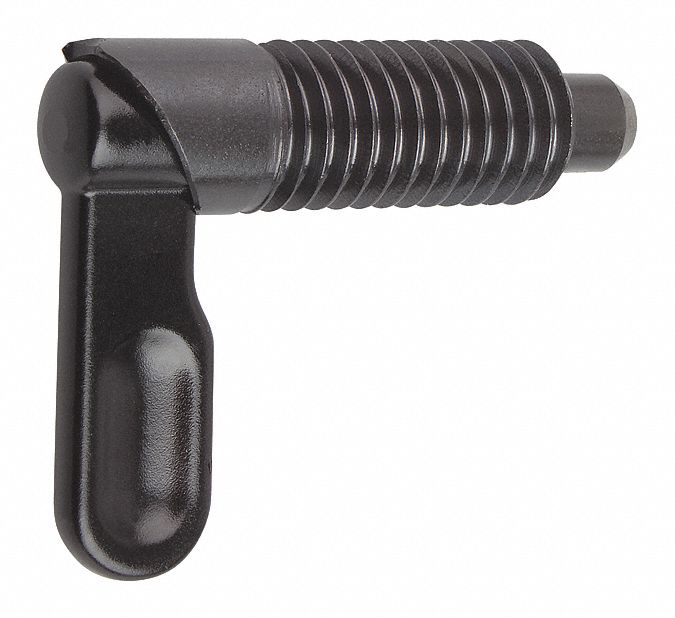

Kipp K0348.0605121 Indexing Plunger, Steel, M12x1.5 Thread, 5 mm Plunger Wd, 8 N to 15 N Nose Force

Kipp K0348.0605121 Indexing Plunger, Steel, M12x1.5 Thread, 5 mm Plunger Wd, 8 N to 15 N Nose Force

UPC: | Harmonization / Schedule B : 7318.19.0000

Country of Origin: Germany | Shipping Weight: 0.065 lbs

$33.85 - $33.85
$33.85
$33.85 - $33.85
$33.85

Cam-action indexing plungers position parts in machining applications and can be locked so the pin remains disengaged for periods of time.

Plunger Width 5 mm
Plunger Style Locking
Retractable Retractable
Body Material Steel
Body Material Grade 5.8
Body Finish Black Oxide
Plunger Material Steel
Plunger Material Grade 5.8
Plunger Finish Black Oxide
Measurement System Metric
Thread Size M12x1.5
Thread Length 25 mm
Plunger Width 5 mm
Plunger Projection 8 mm
Initial Nose Force 8 N
Final Nose Force 15 N
Body Diameter 12 mm
Body Length 38.8 mm
Handle Type Lever
Handle Material Steel
Handle Width 10.8 mm
Handle Length 30 mm
Overall Length 46.8 mm
Standards REACH 1907/2006 (EC); RoHS 2011/65/EU
Country of Origin Germany
