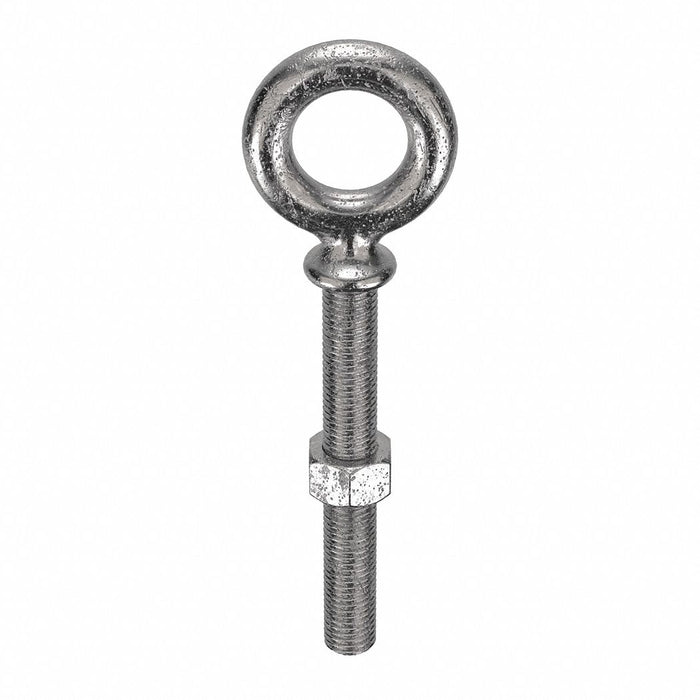

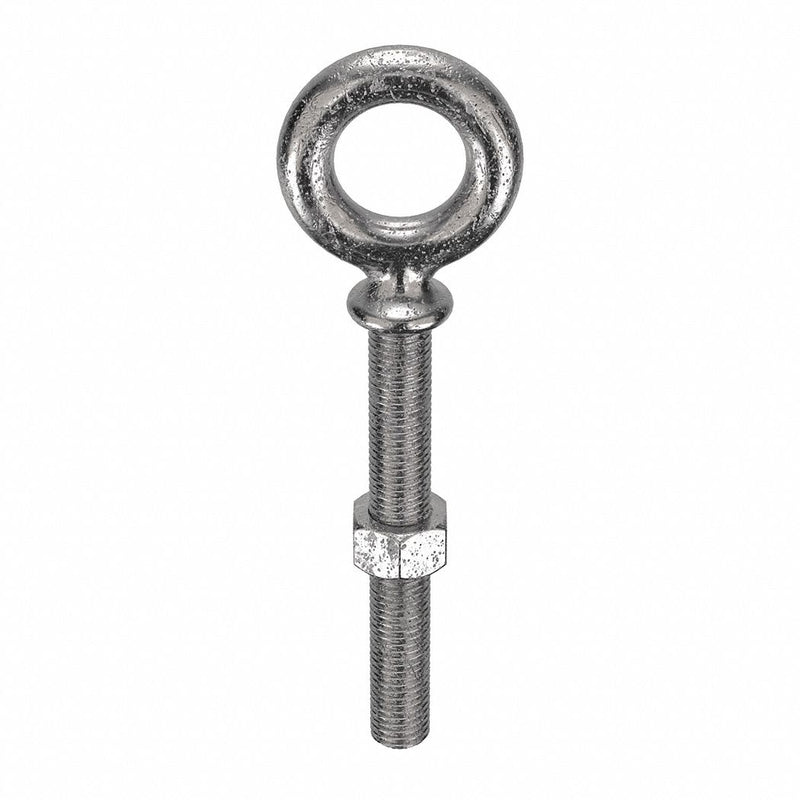

Ken Forging N2028-316SS-6 Machinery Eye Bolt

Ken Forging N2028-316SS-6 Machinery Eye Bolt, With Shoulder, 3/4 in-10 Thread, 316 Stainless Steel, Plain

UPC: | Harmonization / Schedule B : 7318.15.2095

Country of Origin: United States | Shipping Weight: 1.65 lbs

$133.32 - $133.32
$133.32
$133.32 - $133.32
$133.32

Machinery Eye Bolt, System of Measurement Inch, Eyebolt Type Lift with Shoulder, Material Stainless Steel, Finish Plain, Thread Size 3/4 In.-10, Thread Length 3 in, Shank Dia. 3/4 in, Shank Length 6 in, Shoulder Dia. 1.12 in to 1.25 in, Shoulder Length 9/32 in, Eye Inside Dia. 1 1/2 in, Eye Outside Dia. 2 13/16 in, Overall Length 9 25/64 in, Working Load Limit 5,200 lb, Includes (1) Stainless Steel Hex Nut

Shoulder Style With Shoulder
System of Measurement Inch
Material 316 Stainless Steel
Finish Plain
Working Load Limit 5,200 lb
Application Lifting
Eyebolt Type Lift with Shoulder
Type Machinery Eye Bolt
Thread Type Coarse
Pack Size Small Pack
Standards ASME B18.15
Material Grade/Class 316
Globally Sourced Made in USA*
Material Quality Standard ASTM A193-B8M
Includes Nut Nut Included
Eye Closure Closed
Manufacturer Location Made in USA*
Drive Type No Drive
Includes (1) Stainless Steel Hex Nut
Thread Style Partially Threaded
Working Load Limit - Force 5,200 lbf
Country of Origin United States
