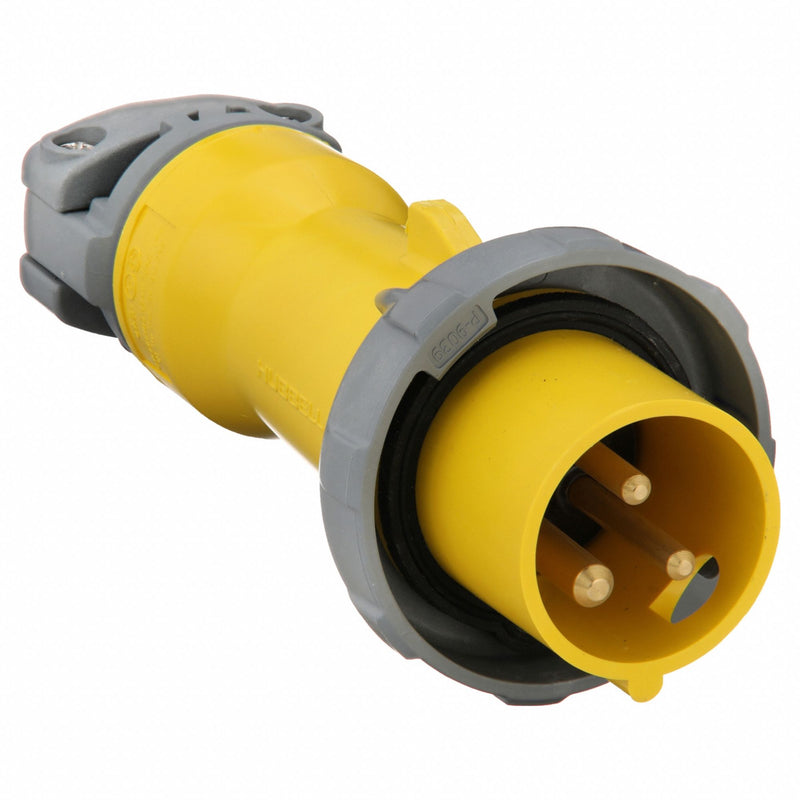

Hubbell HBL320P4W Pin and Sleeve Plug

Hubbell HBL320P4W Pin and Sleeve Plug, 125V AC Single Phase 20A, 2P 3W, Yellow, IEC Grounding, IP67

UPC: | Harmonization / Schedule B : 8536.69.4020

Country of Origin: United States | Shipping Weight: 0.7 lbs

$213.38 - $213.38
$213.38
$213.38 - $213.38
$213.38

Watertight plugs provide secure electrical connections in applications exposed to moisture or splashing water.

Cap Type No Cap or Cover
Compatible with Series Heavy Duty
Connection Orientation Straight
Current Rating 20 A
Voltage Rating 125V AC
Phase Single
Number of Poles 2
Number of Wires 3
Grounding Grounded
Grounding Style IEC
Horsepower Rating 1 hp
Housing Color Yellow
Housing Material PBT
IP Rating IP67
NEMA Enclosure Rating 4X
Maximum Operating Temperature 75 °C
Minimum Operating Temperature -40 °F
Maximum Wire Size 10 AWG
Minimum Wire Size 14 AWG
Overall Length 6.61 in
Switch Rated No
Shrouded Yes
Wire Connection Type Screw Terminals
Features Gasketed Sealing Ring; Raised Collar Surrounds Each Phase Pin; Solid One-Piece Pins Machined from Solid Brass
Standards CSA Certified LR280C; IEC 60309-1; IEC 60309-2; UL 1682; UL 1686 C2
