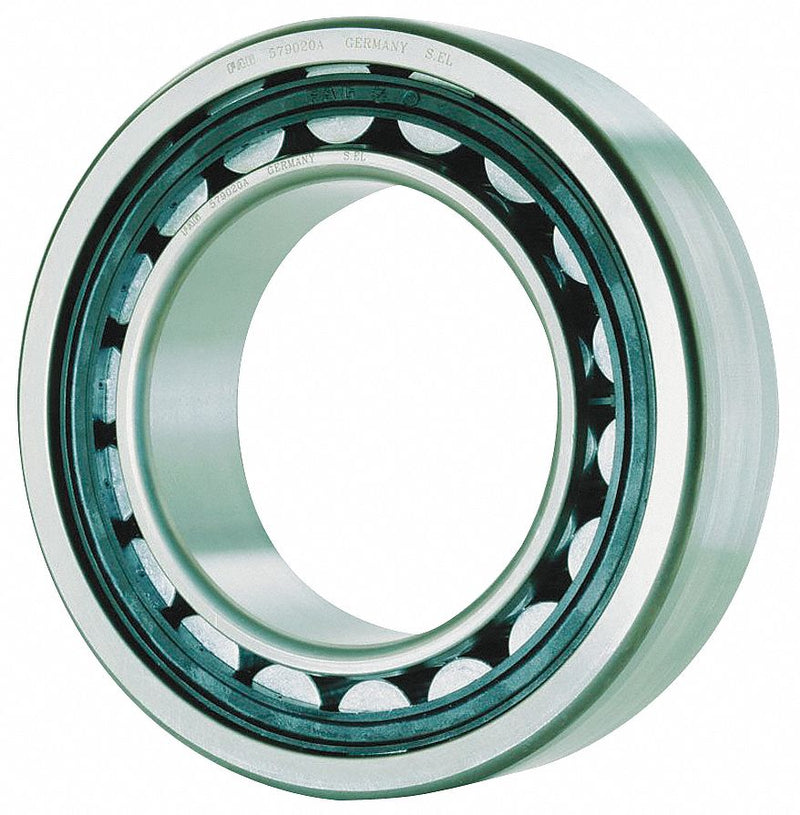

FAG NU204-E-XL-TVP2 Cylindrical Roller Bearing

FAG NU204-E-XL-TVP2 Cylindrical Roller Bearing, 20 mm Bore, 47 mm OD, 14 mm Wide

UPC: | Harmonization / Schedule B : 8482.50.0000

Country of Origin: India | Shipping Weight: 0.25 lbs

$135.60 - $135.60
$135.60
$135.60 - $135.60
$135.60

Cylindrical Roller Bearing, Bearing Industry Number 204, Bore Diameter 20 mm, Bore Type Cylindrical, Cage Material Thermoplastic, Closure Open, Lubricant Material Grease, Oil, Maximum Speed 22,000 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outer Ring Inside Diameter 38.8 mm, Outside Diameter 47 mm, Overall Width 14 mm, Ring Material Alloy Steel, Roller Material Alloy Steel, Seal Type Not Applicable, Split Bearing Yes

Roller Material Alloy Steel
Cage Material Thermoplastic
Static Load Capacity (Lb.) 5,495 lb
Dynamic Load Capacity (Lb.) 7,231 lb
Lubrication Oil
Type Cage Guided
Temp. Range (F) -22 Degrees to 302 Degrees F
Roller Material Grade 100Cr6
Bore Type Cylindrical
Cage Material Grade Fiberglass-Reinforced PA66
Closure Open
Number of Outer Ring Flanges 2
Full Complement No
Ring Material Grade 100Cr6
RBEC Rating 3
System of Measurement Metric
Maximum Speed 22,000 RPM
Includes Retaining Ring No
ISO Rating Class 6
Lubricant Material Grease, Oil
Bearing Industry Number 204
Static Radial Load Capacity 24,700 N
Minimum Temperature -30 Degrees C
Number of Rows One
Dynamic Radial Load Capacity 32,500 N
Maximum Temperature 120 Degrees C
Ring Material Alloy Steel
Split Bearing Yes
Country of Origin India
