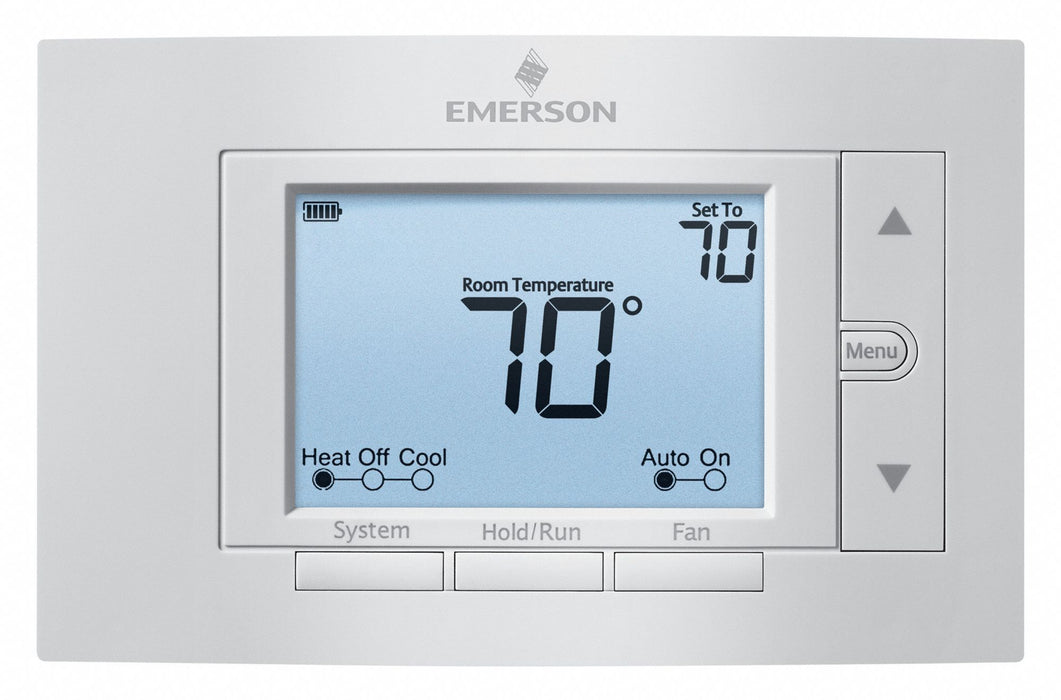

Emerson 1F85U-42NP 80 Series Low Voltage Thermostat, 4H/2C, Heat Pump, Non-Programmable, Digital, Gray

UPC: | Harmonization / Schedule B : 9032.10.0030

Country of Origin: Mexico | Shipping Weight: 0.63 lbs

Original price $121.22 - Original price $121.22
Original price
$121.22
$121.22 - $121.22
Current price $121.22

These thermostats have a digital display for a more modern appearance than analog thermostats. They're often used for temperature control in residential and commercial applications. They're nonprogrammable, so the temperature setting stays the same until it's readjusted. 80 Series Thermostat, Conventional 4H/2C, Heat Pump 4H/2C, Hardwired/Battery, 24VAC, Auto Changeover.

Series 80 Series
Application Heat and Cool
Compatible System Type Electric Forced Air, Gas Forced Air, Heat Pump with Aux, Millivolt
Stages Heating/Cooling 4 H / 2 C Conventional, 4 H / 2 C Heat Pump
Changeover Type Automatic
Display Type Digital
Programming Capability Not Programmable
Voltage 20V AC; 30V AC
Amperage 2.5 A
Min. Control Temperature 45 F
Max. Control Temperature 99 F
Temperature Differential 0.5 to 1.2 F
Number of Zones 1
Dual Transformer Compatible Yes
Millivolt Compatible Yes
Key Pad Lockout Yes
Backlit Type Key Press or Continuous with Common Wire
Electrical Connection Hardwired
Mounting Wall, Surface Mount, Horizontal
Overall Dimensions 6 x 3-3/4 x 1-1/8 in
Housing Color Gray
Housing Material Plastic
Country of Origin Mexico
