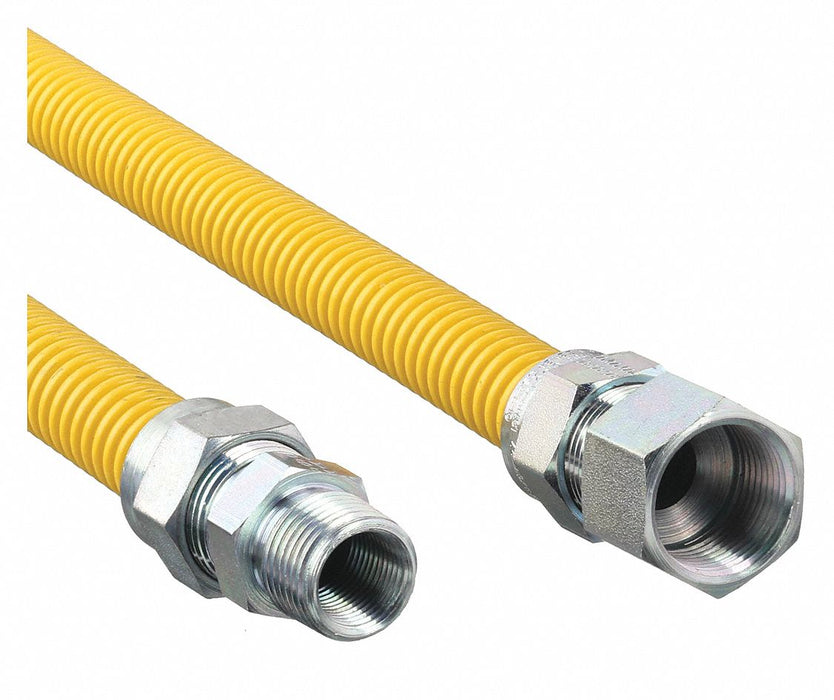

Dormont 30C-3142-60 Gas Connector, 1/2 in ID x 5 ft, 304 Stainless Steel, 5/8 in FNPT x 5/8 in FNPT, Yellow, 93,200 BTU

Dormont 30C-3142-60 Gas Connector, 1/2 in ID x 5 ft, 304 Stainless Steel, 5/8 in FNPT x 5/8 in FNPT, Yellow, 93,200 BTU

UPC: 662447101193 | Harmonization / Schedule B : 8307.10.6000

Country of Origin: United States | Shipping Weight: 1.1 lbs

$44.05 - $44.05
$44.05
$44.05 - $44.05
$44.05

Dormont 30C-3142-60 flexible gas connector for gas ranges and gas furnaces. 1/2 in hose inside diameter, 5/8 in outside diameter, 5 ft length. 304 stainless steel hose with yellow safety coating. 5/8 in FNPT fittings (304 SS) on both ends. Max working pressure 0.5 psi at 70 F. Temperature range -40° to 350°F. BTU capacity 93,200. Meets ANSI Z21.15, Z21.18/CSA 9.1, Z21.24, Z21.41, Z21.69, Z21.90, UL 567, CSA 6.3/6.9/6.16/6.24.

Hose Inside Dia. 1/2 in
Hose Outside Dia. 5/8 in
Hose Length 5 ft
Hose Color Yellow
Hose Tube Material 304 Stainless Steel
Max. Working Pressure @ 70 F 0.5 psi
Temp. Range -40 Degrees to 350 Degrees F
Hose Fitting A Type FNPT
Hose Fitting B Type FNPT
Hose Fitting A Size 5/8 in
Hose Fitting B Size 5/8 in
Hose Fitting A Material 304 Stainless Steel
Hose Fitting B Material 304 Stainless Steel
Hose Configuration Coupled Assembly
For Use With Gas Ranges and Gas Furnaces
BTU Capacity 93,200
Standards ANSI Z21.15; ANSI Z21.18/CSA 9.1; ANSI Z21.24; ANSI Z21.41; ANSI Z21.69; ANSI Z21.90; ANSI/UL 567; CSA 6.16; CSA 6.24; CSA 6.9; CSA 6.3
