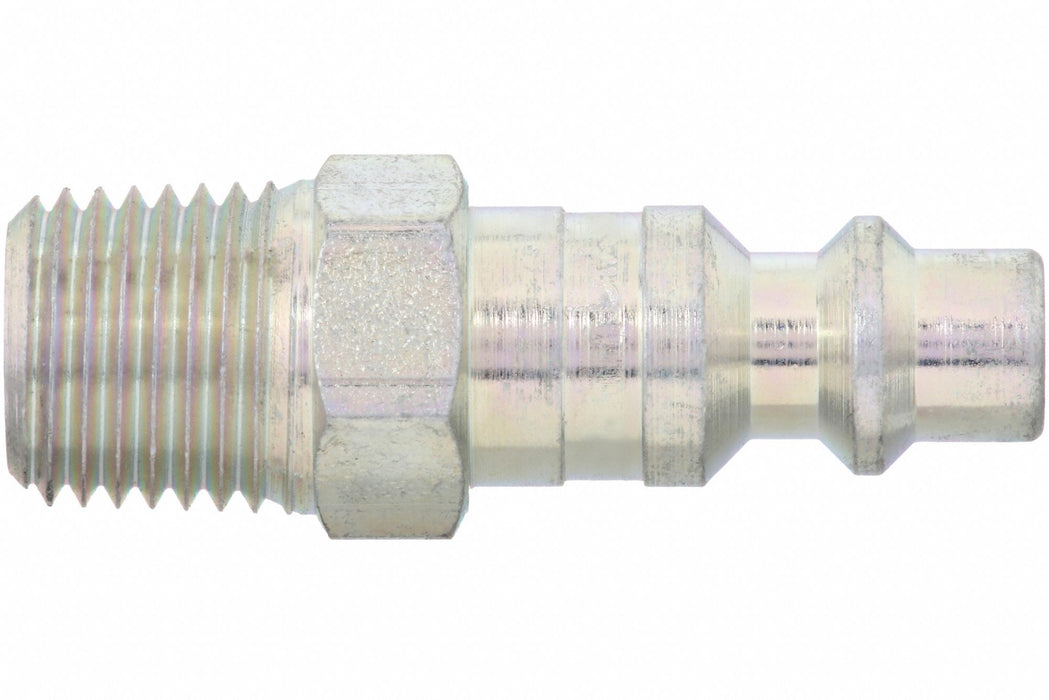

Dixon D3M3 Industrial Quick Connect Plug 3/8 in MNPT Steel

Dixon D3M3 Industrial Quick Connect Plug, 3/8 in Body, 3/8 in MNPT, Steel, 500 psi

UPC: | Harmonization / Schedule B : 7307.92.3030

Country of Origin: United States | Shipping Weight: 0.09 lbs

$4.95 - $4.95
$4.95
$4.95 - $4.95
$4.95

Industrial interchange steel quick-connect air coupling plugs are the male end of coupling sets. Also called nipples, they're inserted into the coupling bodies (female ends) to connect tools to air lines. High-flow couplings increase flow for greater tool efficiency, reduce pressure drop, and decrease air costs. Steel couplings are hard and resilient with more damage resistance than softer metals and a wide working temperature range.

Interchange Type Industrial
Material Steel
Coupling Component Plug
Hose Fitting Gender Male
Connection Type NPT
Fitting Type MNPT
Hose Fitting Size 3/8 in
For Hose I.D. 3/8 in
Body Size 3/8 in
Thread Size 3/8"-18
Finish/Coating Zinc Plated
Color Silver
Barbed No
Includes Valve No
Max. Working Pressure @ 70 °F 500 psi
Max. Flow Rate 1,274.25 lpm
Coupling Locking Type Sleeve
Seal Material Nitrile
Overall Length 1-7/8 in
Max. Outside Dia. 7/8 in
Temp. Range -40° to 250°F
Country of Origin United States
