Cleveland Controls 21123-112 Total Pressure Probe 8 in Barbed

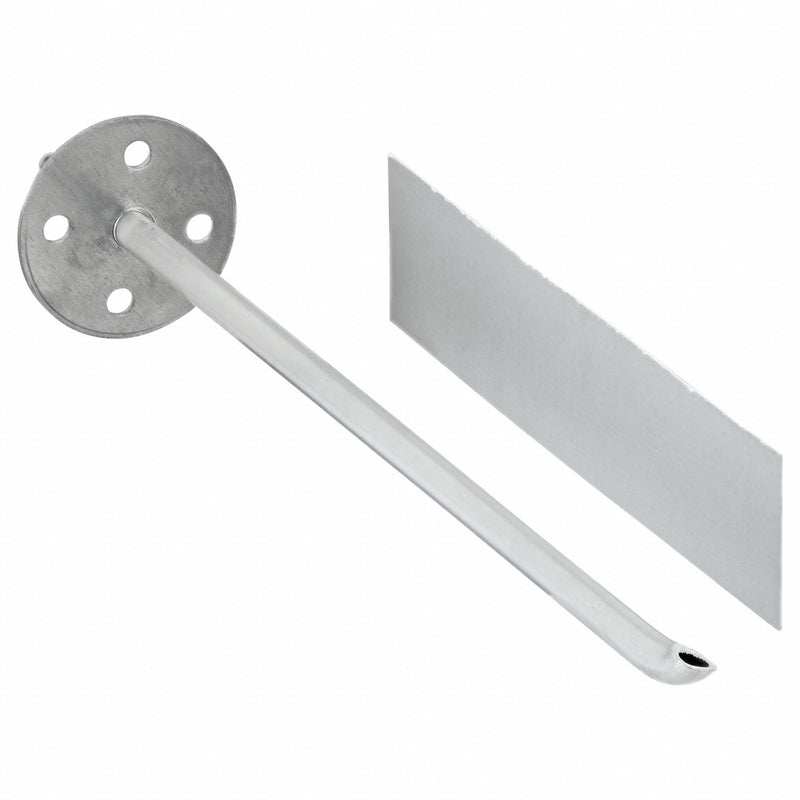

Cleveland Controls 21123-112 Total Pressure Probe, 9-1/4 in OAL, 8 in Insertion, 1/2 in Barb

UPC: | Harmonization / Schedule B : 8536.50.9065

Country of Origin: United States | Shipping Weight: 0.1 lbs

$7.28 - $7.28
$7.28
$7.28 - $7.28
$7.28

Total Pressure Probe, Product Type Total Pressure Probe, Flange Diameter 1 1/2 in, Overall Length 9 1/4 in, Exterior Length 1 1/4 in, Insertion Length 8 in, Accuracy Not Rated, Process Connection Size 1/2 in, Process Connection Type Barb, Includes Metal Barbed Hose Adapter, Probe Diameter 1/4 in. Total pressure probes are installed into an HVAC system and measure the dynamic pressure of the airstream. Their tips are aligned with the airstream and measure the full force of the airflow rather than the static pressure.

Mounting Hole Center to Center 1 in
Type Impact
For Use With Air Pressure Sensing Switches
Mounting Flange 4 Hole
Includes Metal Barbed Hose Adapter
Application Air Pressure Sensing Switches
Accuracy Not Rated
Number of Mounting Holes 4
Mounting Hole Center to Center Distance 1 in
Process Connection Type Barb
Product Type Total Pressure Probe
Overall Length 9-1/4 in
Exterior Length 1-1/4 in
Insertion Length 8 in
Fitting Size 1/4 in
Mounting Hole Diameter 3/16 in
Flange Diameter 1-1/2 in
Process Connection Size 1/2 in
Probe Diameter 1/4 in
Country of Origin United States
