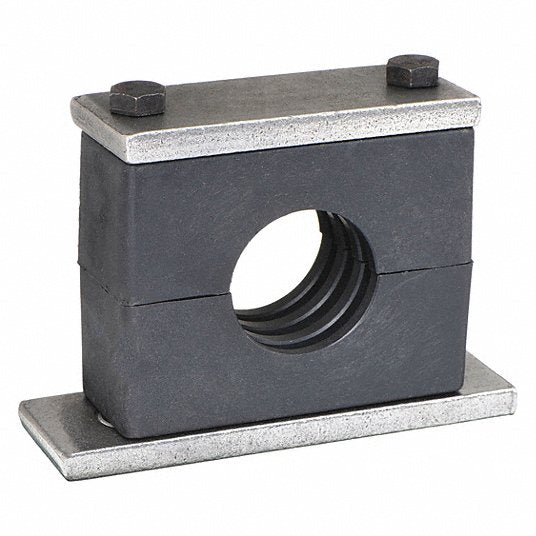

Behringer SH8450-PP Vibration-Dampening Beta Clamp Ribbed Bore, Steel Clamp, For 1 Lines

Vibration-Dampening Beta Clamp, Clamp Bore Style Ribbed, Clamp Material Steel, Clamp Material Finish Not Applicable, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Number of Lines 1, For Pipe Size 4 in, For Strut Channel Width Not Applicable, Load Capacity 180 lb

Type	Weld Plate
Includes	CLH Clamp Set (2 Halves), SCP Cover Plate, SWP Weld Plate, (2) Hex Bolts
Temp. Range (F)	-22 to 194
Insert Material	Polypropylene
Hardware Material	Carbon Steel
Metal Detectable	Yes
Bolt Material	Steel
Clamp Style	Weld Plate Mount Clamp
Cushion Material	Polypropylene
Clamp Material	Steel
Includes Mounting Hardware	Yes
Top Plate Material	Steel
Clamp Type	Beta Clamp Assembly
Mount Type	Weld-On
For Use On	Pipe, Tube
Maximum Operating Pressure	5,000 psi
Application	Hydraulic Systems
Series	Heavy
Number of Mounting Holes	0
For Number of Lines	1
Maximum Operating Temperature	194 Degrees F
Minimum Operating Temperature	-22 Degrees F
Clamp Bore Style	Ribbed
Bottom Plate Material	Steel
Load Capacity	180 lb
