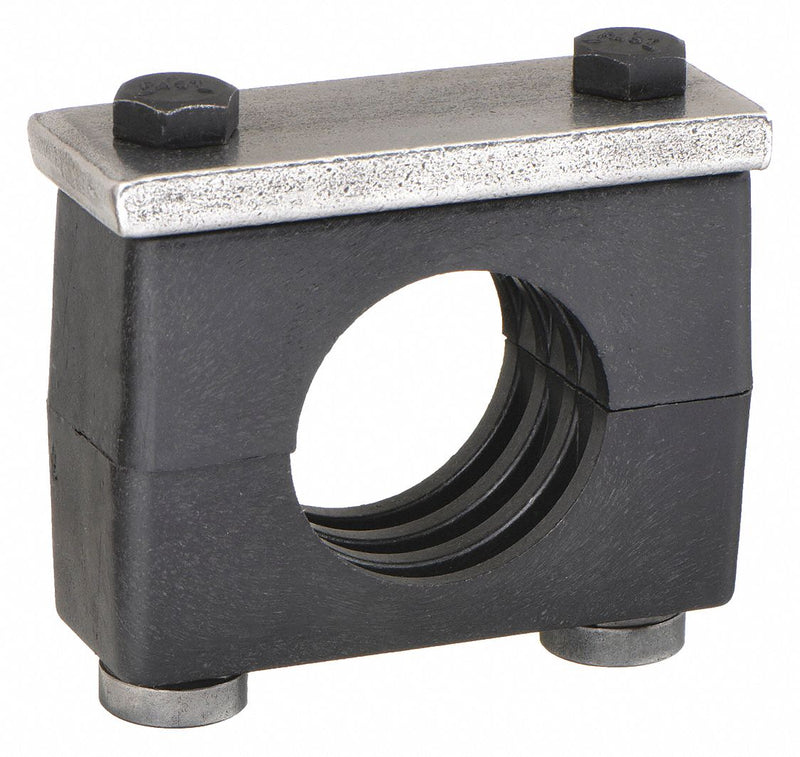

SH51660-PP Behringer Beta Clamp

Behringer SH51660-PP Vibration-Dampening Beta Clamp Kit, Ribbed Bore, Steel, Polypropylene Cushion, Weld-On

UPC: | Harmonization / Schedule B : 7326.90.8630

Country of Origin: United States | Shipping Weight: 0.2 lbs

$16.31 - $16.31
$16.31
$16.31 - $16.31
$16.31

Vibration-Dampening Beta Clamp, Clamp Bore Style Ribbed, Clamp Material Steel, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Number of Lines 1, Load Capacity 75 lb

Material Steel
Type Weld Plate
Includes CLH Clamp Set (2 Halves), SCP Cover Plate, SWP Weld Plate, (2) Hex Bolts
Hardware Material Carbon Steel
Insert Material Polypropylene
Temp. Range (F) -22 to 194
Mount Type Weld-On
For Use On Pipe, Tube
Cushion Material Polypropylene
Maximum Operating Pressure 5,000 psi
Clamp Material Steel
Number of Mounting Holes 0
Series Heavy
Minimum Operating Temperature -22 Degrees F
Bolt Material Steel
Maximum Operating Temperature 194 Degrees F
Load Capacity 75 lb
Clamp Type Beta Clamp Assembly
Application Hydraulic Systems
Includes Mounting Hardware Yes
Top Plate Material Steel
Clamp Style Weld Plate Mount Clamp
Clamp Bore Style Ribbed
For Number of Lines 1
Bottom Plate Material Steel
Country of Origin United States
