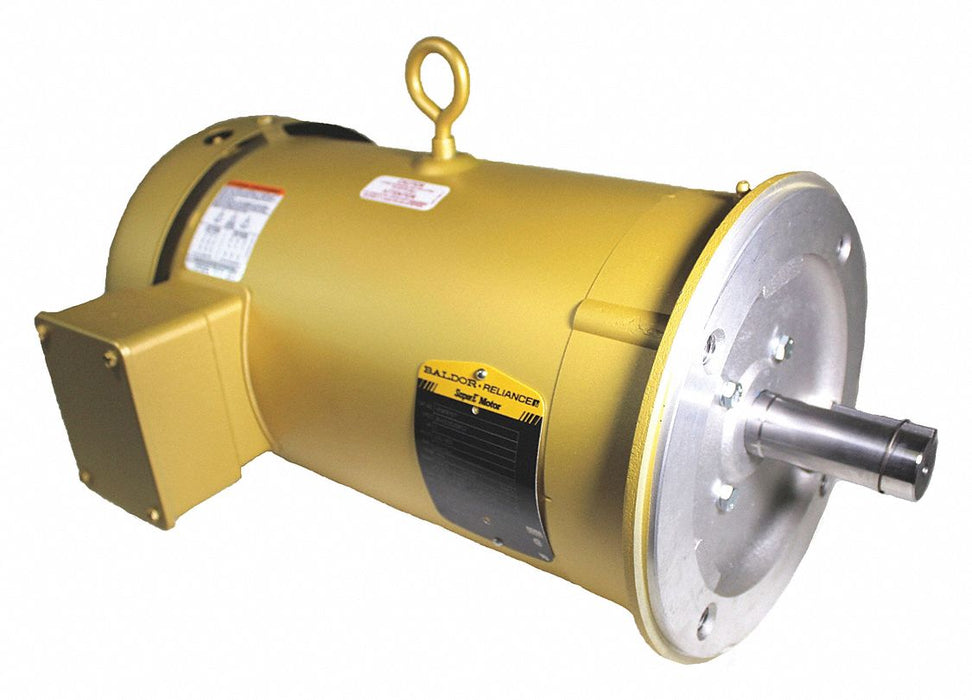

Baldor VEM3615T 5 HP TEFC C-Face Motor

Baldor VEM3615T General Purpose Motor, 5 HP, 208-230/460V AC, Totally Enclosed Fan Cooled, C-Face Mount, 1750 rpm, 184TC Frame

UPC: | Harmonization / Schedule B : 8501.52.4000

Country of Origin: United States | Shipping Weight: 91 lbs

$1,742.30 - $1,742.30
$1,742.30
$1,742.30 - $1,742.30
$1,742.30

NEMA 180 frame three-phase general purpose AC motors have a standard 1-1/8" diameter, 2-3/4" length shaft whose center is 4-1/2" above the mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 182TC. The letter “T” specifies integral HP motor dimension standards set by NEMA in 1953 and 1964, “C” indicates that the motor can be face mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).

Motor Application General Purpose
Phase Three
HP 5
Nameplate RPM 1750 rpm
Voltage 208-230/460V AC
Full Load Amps 13.4/6.7 A
Frame 184TC
Hz 60 Hz
Motor Service Factor 1.15
Motor Thermal Protection None
Insulation Class F
NEMA Design B
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Mounting Type C-Face
Motor Mounting Position Horizontal
Inverter Rated Yes
Motor Frame Material Steel
Shaft Dia. 1-1/8 in
Shaft Length 2-5/8 in
Overall Length 18-1/16 in
Includes Conduit Box
Weight 89 lb
Nominal Efficiency 89.5 %
Standards CSA; CSA EEV; UR
Country of Origin United States
