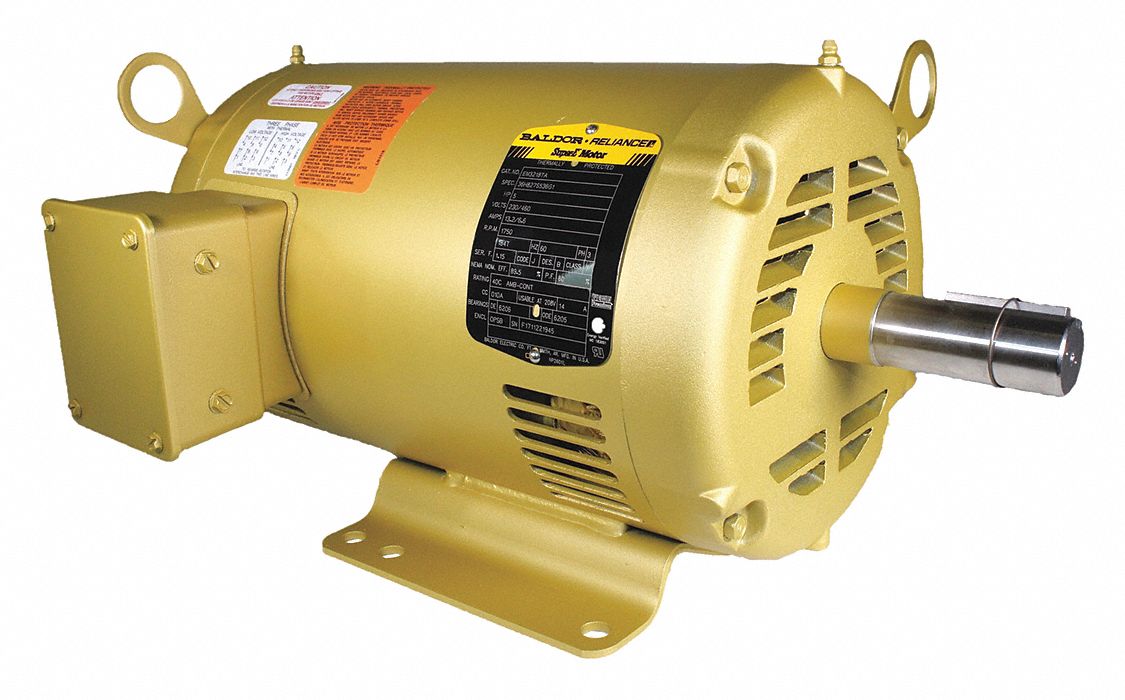

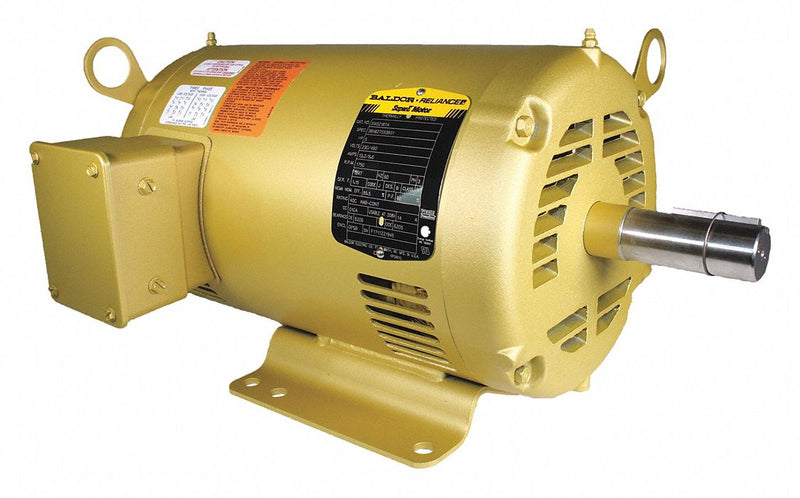

Baldor EM3218TA General Purpose Motor, 5 HP, 208-230/460V AC, Open Drip Proof, Rigid Base Mount, 1750 rpm, 184T Frame, Auto Thermal Protection

UPC: | Harmonization / Schedule B : 8501.52.4000

Country of Origin: United States | Shipping Weight: 82.9 lbs

Original price $1,976.21 - Original price $1,976.21
Original price
$1,976.21
$1,976.21 - $1,976.21
Current price $1,976.21

NEMA 180 frame three-phase general purpose AC motors have a standard 1-1/8" diameter, 2-3/4" length shaft whose center is 4-1/2" above the mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 182TC. The letter “T” specifies integral HP motor dimension standards set by NEMA in 1953 and 1964, “C” indicates that the motor can be face mounted. The combined suffix "CH" indicates that the face-mounting dimensions differ from frames with a "C" letter designation. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).

Motor Application General Purpose
Phase Three
Motor Design Three-Phase
HP 5
Nameplate RPM 1750 rpm
No. of Speeds 1
Voltage 208-230/460V AC
Full Load Amps 13.2/6.6 A
Frame 184T
Usable @ 208V Yes
Usable @ 200V No
Hz 60 Hz
Motor Service Factor 1.15
Max. Ambient Temp. 40 °C
Motor Thermal Protection Auto
Duty Cycle Continuous
Insulation Class F
NEMA Design B
Motor Enclosure Design Open Drip Proof
Motor Shaft Rotation CW/CCW
Motor Mounting Type Rigid Base
Motor Mounting Position All Angle
Inverter Rated Yes
Motor Shaft Design Keyed
Motor Frame Material Steel
Shaft Dia. 1-1/8 in
Shaft Length 2-3/4 in
Motor Bearings Ball
Length Less Shaft 13-3/4 in
Overall Length 16-1/2 in
Includes Conduit Box
Weight 81 lb
Nominal Efficiency 89.5 %
Standards CSA; CSA EEV; UR
Manufacturer's Warranty Length 3 yr
Country of Origin United States
