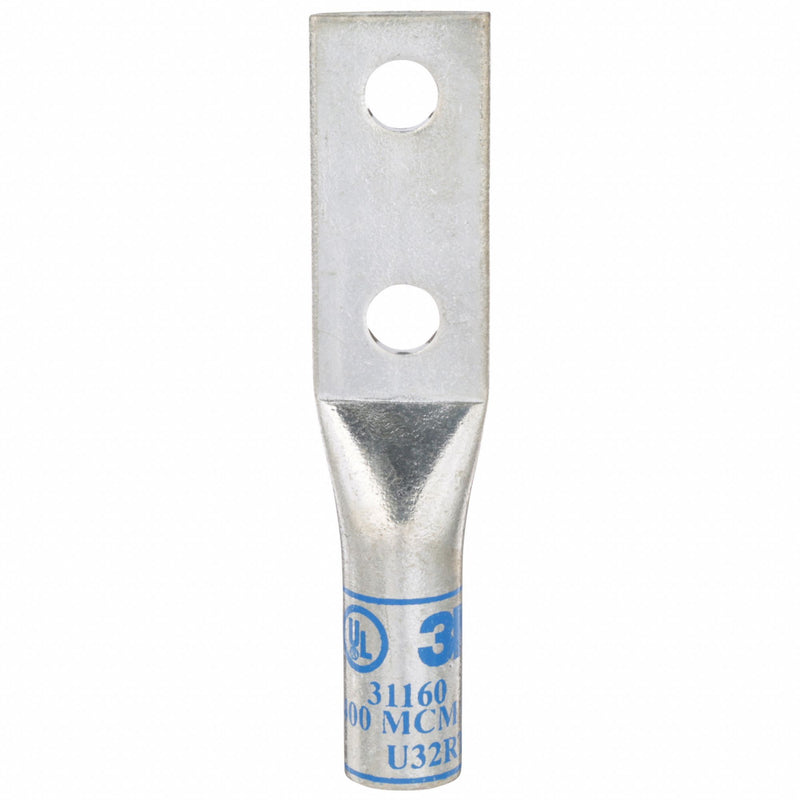

3M 31160 Compression Lugs, For 400 kcmil, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel

3M 31160 Compression Lugs, For 400 kcmil, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel

UPC: | Harmonization / Schedule B : 8535.90.8020

Country of Origin: Chile | Shipping Weight: 5 lbs

$566.52 - $566.52
$566.52
$566.52 - $566.52
$566.52

These compression lugs have two mounting holes for attaching around studs or bolts. Their second mounting hole prevents the lug from rotating and provides additional support for heavy loads. They transfer power or ground connections from wires to connection points, such as busbars, motors, machines, and batteries.

Barrel ID 0.76 in
Barrel OD 0.95 in
Barrel Size Long
Barrel Style Seamless
Color Code Blue
Connector Type Straight Barrel
Contact Finish Tin
Die Code 19
Display Qty 10
Display Sell UOM PK
For Conductor Material Copper
For Stud Size 1/2 in
For Wire Sizes 400 kcmil
For Wire Type Stranded
Hole Center to Center 1.75 in
Hole Center to End 0.63 in
Inspection Hole No
Material CopperLug
Maximum Voltage 35 kV
Maximum Wire Size 400 kcmil
Number of Holes 2
Overall Length 6 in
Overall Width 1.41 in
Seam Style Seamless
Special Features Corrosion Resistance; Good Conductivity; Reliable Performance; Secure Fit
Standards CSA Certified; UL Listed
Stud Size 1/2 in
Termination Style Crimp
Tongue Angle Straight
Tongue Length 3 in
Tongue Style Standard
Tongue Width 1.41 in
Country of Origin Chile
