3M 31129 Compression Lugs, For 1 AWG, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel

3M 31129 Compression Lugs, For 1 AWG, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel

UPC: 051138524982 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: Chile | Shipping Weight: 1.1 lbs

$264.84 - $264.84
$264.84
$264.84 - $264.84
$264.84

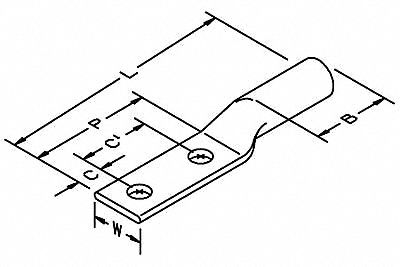

Compression Lugs, Barrel Size Long, Color Code Green, Die Code 11, Tongue Angle Straight, Tongue Width 0.69 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Maximum 1 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards -, Number of Holes 2, RoHS Compliant Yes, Barrel Inside Diameter 0.36 in, Barrel Outside Diameter 0.42 in, Barrel Style Chamfered, Seamless

For Wire Size 1 AWG
For Stud Size 1/2 in
Barrel Size Long
Tongue Width 0.69 in
Length 4.85"
Width 0.69"
Length (Straight Wireway) 4.85 in
Barrel Inside Diameter 0.36 in
Barrel Outside Diameter 0.42 in
Country of Origin Chile
