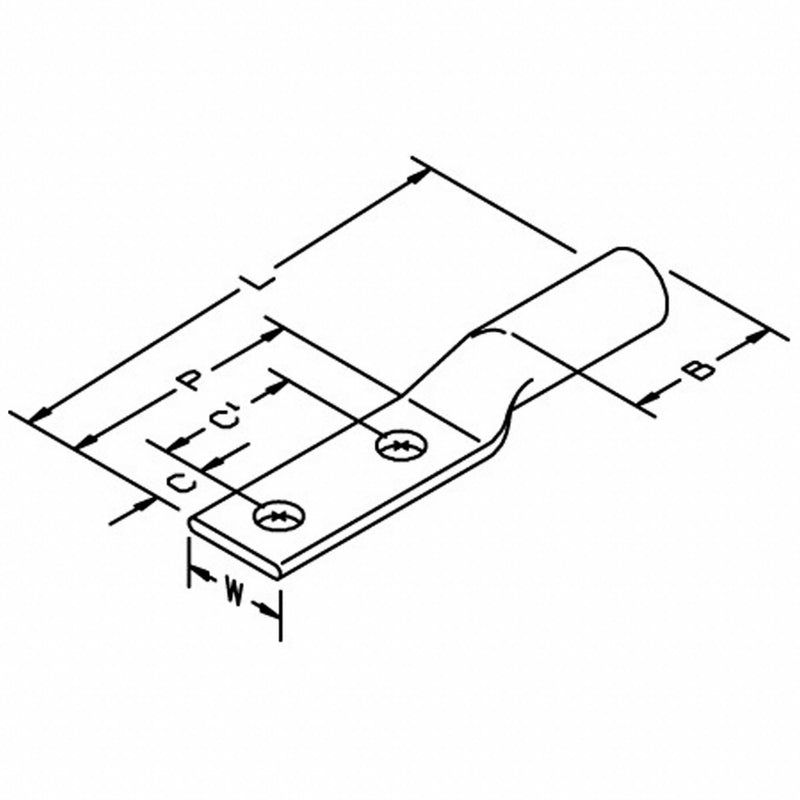

3M 31125 Compression Lugs, For 2 AWG, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel

3M 31125 Compression Lugs, For 2 AWG, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel

UPC: | Harmonization / Schedule B : 8535.90.8020

Country of Origin: Chile | Shipping Weight: 2.3 lbs

$599.67 - $599.67
$599.67
$599.67 - $599.67
$599.67

These compression lugs have two mounting holes for attaching around studs or bolts. Their second mounting hole prevents the lug from rotating and provides additional support for heavy loads. They transfer power or ground connections from wires to connection points, such as busbars, motors, machines, and batteries.

Barrel ID 0.31 in
Barrel OD 0.42 in
Barrel Size Long
Barrel Style Chamfered; Seamless
Color Code Brown
Connector Type Straight Barrel
Contact Finish Tin
Die Code 10
Display Qty 25
Display Sell UOM PK
For Conductor Material Copper
For Stud Size 1/2 in
For Wire Sizes 2 AWG
For Wire Type Stranded
Hole Center to Center 1.75 in
Hole Center to End 0.63 in
Inspection Hole No
Material CopperLug
Maximum Voltage 35 kV
Maximum Wire Size 2 AWG
Number of Holes 2
Overall Length 4.85 in
Overall Width 0.63 in
Seam Style Seamless
Special Features High-Conductivity Construction
Stud Size 1/2 in
Termination Style Crimp
Tongue Angle Straight
Tongue Length 3 in
Tongue Style Standard
Tongue Width 0.63 in
Country of Origin Chile
