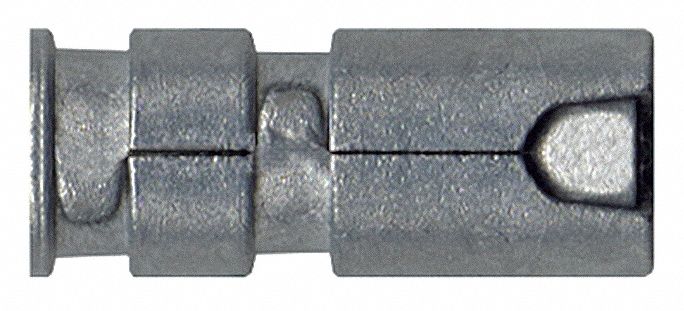

Mkt Fastening 6104000 Expansion Anchor, 1/4"-20 Thread Size, 1 5/16 in Overall Lg, 1/2 in Dia, Plain, 25 PK

Mkt Fastening 6104000 Expansion Anchor, 1/4"-20 Thread Size, 1 5/16 in Overall Lg, 1/2 in Dia, Plain, 25 PK

UPC: | Harmonization / Schedule B : 7316.00.0000

Country of Origin: China | Shipping Weight: 0.75 lbs

$10.03 - $10.03
$10.03
$10.03 - $10.03
$10.03

Expansion Anchor, Anchor Diameter 1/2 in, Overall Length 1 5/16 in, Screw Size 1/4 in, Thread Size 1/4 In.-20, Thread Depth 1.3125 in, Thread Type Coarse, Material Zinc Alloy, Finish Plain, Drill Bit Size 1/2 in, Minimum Installation Depth 1 5/16 in, Ultimate Shear Strength (4,000 psi Concrete) 1,750 lb, Maximum Ultimate Shear Strength 1,750 lb, Ultimate Tension Strength (4,000 psi Concrete) 2,410 lb, Maximum Ultimate Tension Strength 2,410 lb, System of Measurement Inch

Anchor Diameter 1/2"
Overall Length 1-5/16"
Drill Bit Size 1/2"
Minimum Hole Depth 1-5/16"
Thread Size 1/4"-20
Screw Size 1/4 in
Bolt or Rod Size 1/4 in
Thread Depth 1.3125 in
Minimum Installation Depth 1 5/16 in
Wire Rope Length 1 5/16 in
Length 1 5/16 in
Compatible Material Concrete
Material Alloy Steel
Finish Plain
Industry Standards GSA Spec FF-S-325C Group II, Type 2, Class 2, Style 1
Min. Embedment 1-5/16"
Type Machine Screw
Use With Machine Screws
Ultimate Shear in 3000 PSI Concrete (Lb.) 1,750 lb
Ultimate Tension in 3000 PSI Concrete (Lb.) 2,410 lb
Application Concrete and Block
Expansion Anchor Type Double Expansion Anchor
Manufacturer Location Made in USA
Maximum Ultimate Shear Strength 1,750 lb
Series Import Double
Features Expander Nut
Maximum Ultimate Tension Strength 2,410 lb
Ultimate Shear Strength (4,000 psi Concrete) 1,750 lb
Thread Type Coarse
Installation Method Machine Screw
System of Measurement Inch
Ultimate Tension Strength (4,000 psi Concrete) 2,410 lb
Country of Origin China
