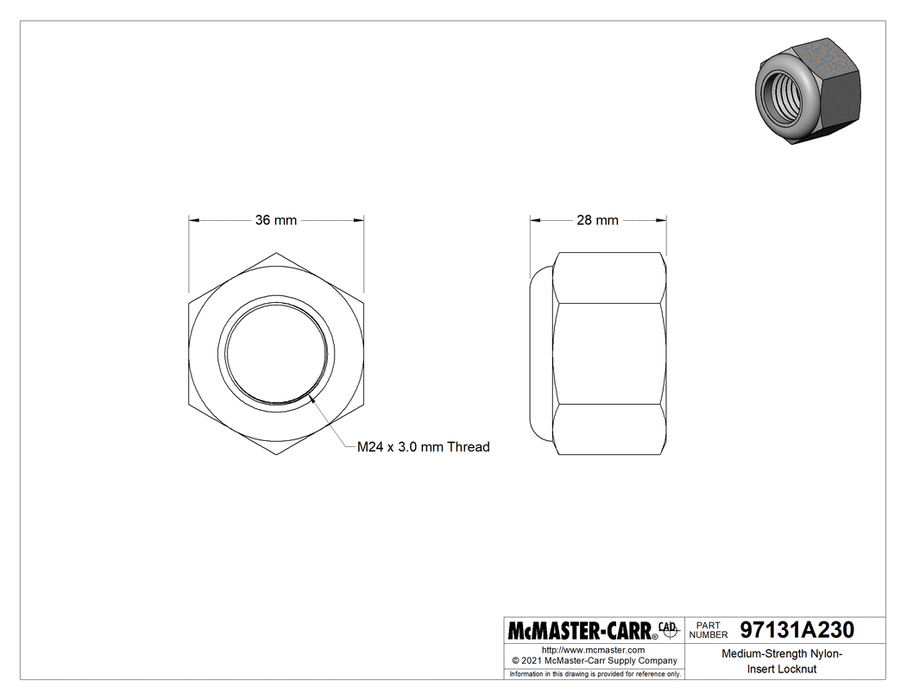

McMaster 97131A230 High-Profile Nylon-Insert Locknut Medium-Strength, Zinc Plated Steel, M24 x 3 mm Thread
UPC: | Harmonization / Schedule B : 7318.16.0000
Country of Origin: China | Shipping Weight: 0.595 lbs
UPC: | Harmonization / Schedule B : 7318.16.0000
Country of Origin: China | Shipping Weight: 0.595 lbs
Slightly taller than standard-profile locknuts, these have a larger gripping area so your wrench or socket won't slip off as you tighten them. They're often used in vehicles and machinery where fasteners can be difficult to reach. The nylon insert grips the screw to prevent loosening from moderate vibration without damaging threads. However, the insert may become brittle if exposed to high temperatures. These locknuts are reusable a handful of times, but the holding power decreases with each use.
Medium-Strength Steel—These Grade 5 or Class 8 nuts are your go-to for fastening most machinery and equipment. To avoid stripped threads during installation, make sure your screw has a comparable strength rating.
Zinc-Plated Steel—A step up from plain steel, the zinc plating withstands occasional exposure to moisture.
|
Thread Direction
|
Right Hand |
|
Hex Nut Profile
|
High |
|
Locking Type
|
Nylon Insert |
|
Fastener Strength Rating
|
Medium |
|
Finished Material
|
Zinc-Plated Steel |
|
Thread Size
|
M24 |
|
Thread Pitch
|
3 mm |
|
Width
|
36 mm |
|
Height
|
28 mm |
|
Fastener Strength Grade/Class
|
ISO Class 8 |
|
Insert Maximum Temperature
|
220° F |
|
Specifications Met
|
DIN 982, ISO 7040 |
|
Drive Style
|
External Hex |
|
Nut Type
|
Hex, Locknut |
|
Performance
|
Vibration Resistant |
|
System of Measurement
|
Metric |
|
Thread Fit
|
Metric Class 6H |
|
Thread Spacing
|
Coarse |
|
Thread Type
|
Metric |
|
Country of Origin
|
China, Malaysia, Taiwan, Thailand |
|
DFARS Compliance
|
Not Specialty Metals Compliant |
|
Export Control Classification Number (ECCN)
|
EAR99 |
|
REACH Compliance
|
REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
|
RoHS Compliance
|
RoHS 3 (2015/863/EU) Compliant |
|
Schedule B Number
|
731816.0000 |
|
U.S.–Mexico–Canada Agreement (USMCA) Qualifying
|
No |
