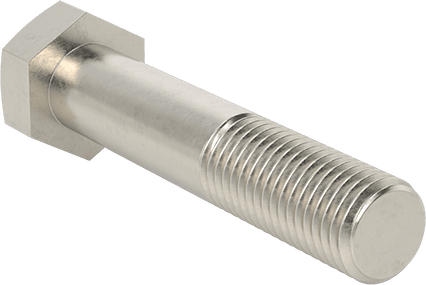

McMaster 92186A890 Super-Corrosion-Resistant 316 Stainless Steel Hex Head Screw 7/8"-9 Thread Size, 4-1/2" Long, Partially Threaded

Name: McMaster 92186A890 Super-Corrosion-Resistant 316 Stainless Steel Hex Head Screw 7/8"-9 Thread Size, 4-1/2" Long, Partially Threaded
Brand: McMaster-Carr
Price: 41.44 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7318.15.9000

Country of Origin: China | Shipping Weight: 1.907 lbs

$41.44 - $41.44

$41.44

$41.44 - $41.44

$41.44

More corrosion resistant than 18-8 stainless steel screws, these 316 stainless steel screws have excellent resistance to chemicals and salt water. They may be mildly magnetic. Length is measured from under the head.

Match the thread spacing of mating components.

Coarse threads are the industry standard; choose these screws if you don’t know the pitch or threads per inch.

Screws that meet ASME, ISO (formerly DIN), or DIN specifications comply with these dimensional standards.

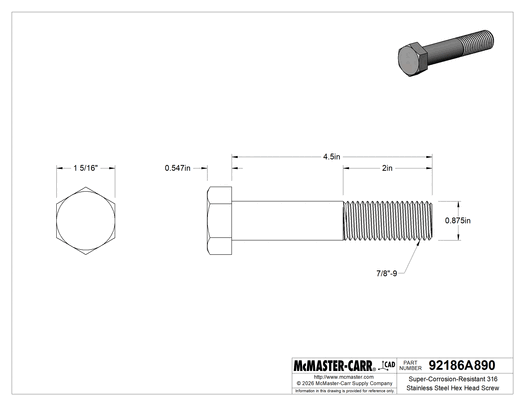

Head Type	Hex
Drive Style	External Hex
System of Measurement	Inch
Thread Direction	Right Hand
Thread Size	7/8"-9
Screw Size Decimal Equivalent	0.875"
Thread Type	UNC
Thread Fit	Class 2A
Length	4 1/2"
Threading	Partially Threaded
Min. Thread Length	2"
Thread Spacing	Coarse
Head
Width	1 5/16"
Height	35/64"
Material	316 Stainless Steel
Tensile Strength	70,000 psi
Hardness	Rockwell B70
Specifications Met	ASME B18.2.1
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant
DFARS	Not Specialty Metals Compliant
Country of Origin	Peoples Republic Of China, Taiwan, or Thailand
Schedule B	731815.9000
ECCN	EAR99
