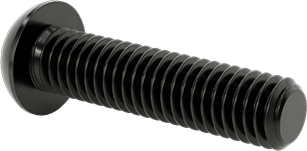

McMaster 91239A327 Button Head Hex Drive Screw Black-Oxide Alloy Steel, M6 x 1.00 mm Thread, 25 mm Long

Name: McMaster 91239A327 Button Head Hex Drive Screw Black-Oxide Alloy Steel, M6 x 1.00 mm Thread, 25 mm Long
Brand: McMaster-Carr
SKU: KV91239A327
Price: 32.15 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7318.15.9000

Country of Origin: Varies | Shipping Weight: 0.855 lbs

$32.15 - $32.15

$32.15

$32.15 - $32.15

$32.15

Quantity

These alloy steel screws are nearly twice as strong as stainless steel button head screws. Length is measured from under the head.

Black-oxide alloy steel screws are mildly corrosion resistant in dry environments.

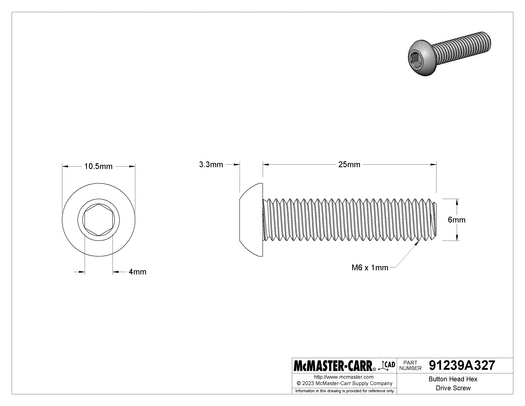

Thread Size	M6
Thread Pitch	1 mm
Length	25 mm
Threading	Fully Threaded
Head Diameter	10.50 mm
Head Height	3.30 mm
Drive Style	Hex
Drive Size	4 mm
Material	Black-Oxide Alloy Steel
Fastener Strength Grade/Class	Class 10.9
Hardness	Rockwell C32
Tensile Strength	120,000 psi
Thread Type	Metric
Thread Spacing	Coarse
Thread Fit	Class 6g
Thread Direction	Right Hand
Head Type	Rounded
Rounded Head Style	Button
Rounded Head Profile	Standard
System of Measurement	Metric
Specifications Met	ISO 7380
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant
DFARS	Not Specialty Metals Compliant
Country of Origin	Belgium, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Peoples Republic Of China, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, or Vietnam
Schedule B	731815.9000
ECCN	EAR99
