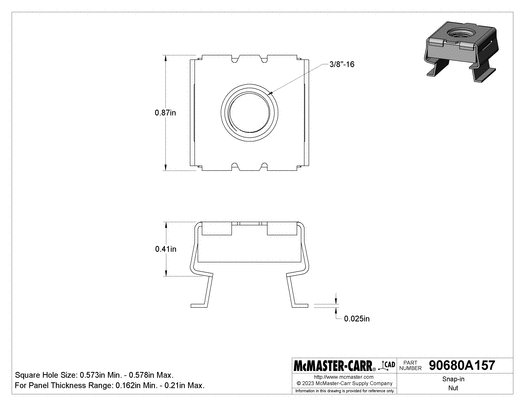

McMaster 90680A157 Snap-in Nut Zinc-Plated Steel, 3/8"-16 Size, for 0.162"-0.21" Thick Panel

UPC: | Harmonization / Schedule B : 7318.16.0000

Country of Origin: United States | Shipping Weight: 0.35 lbs

Original price $31.46 - Original price $31.46
Original price
$31.46
$31.46 - $31.46
Current price $31.46

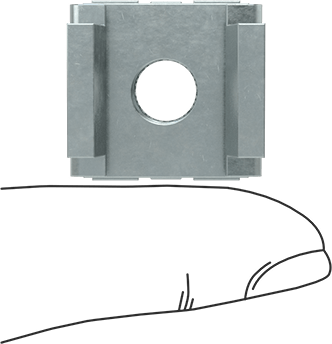

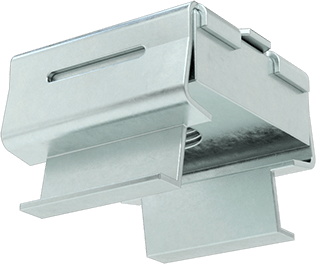

Snap these nuts—also known as cage nuts—into square holes in thin material. They’re often used to mount servers and other equipment in electronics racks. Threads float inside the cage, so you can fasten a bolt at a slight angle to align off-center parts. Mounting legs expand to lock these nuts in place.

Install these nuts by hand, with pliers, or with a snap-in nut installation and removal tool.

Zinc-plated steel nuts resist corrosion in wet environments.

Material

Zinc-Plated Steel

Thread Size

3/8"-16

Thread Type

UNC

Thread Spacing

Coarse

Thread Direction

Right Hand

For Panel Thickness

0.162" to 0.21"

Square Hole Size

0.573" to 0.578"

Width

0.87"

Head Height

0.41"

Nut Type

Snap In, Square

Snap-In Nut Profile

Rectangular with Floating Nut

System of Measurement

Inch

RoHS

RoHS 3 (2015/863/EU) Compliant

REACH

REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

DFARS

Specialty Metals COTS-Exempt

Country of Origin

United States

USMCA Qualifying

No

Schedule B

731816.0000

ECCN

EAR99
