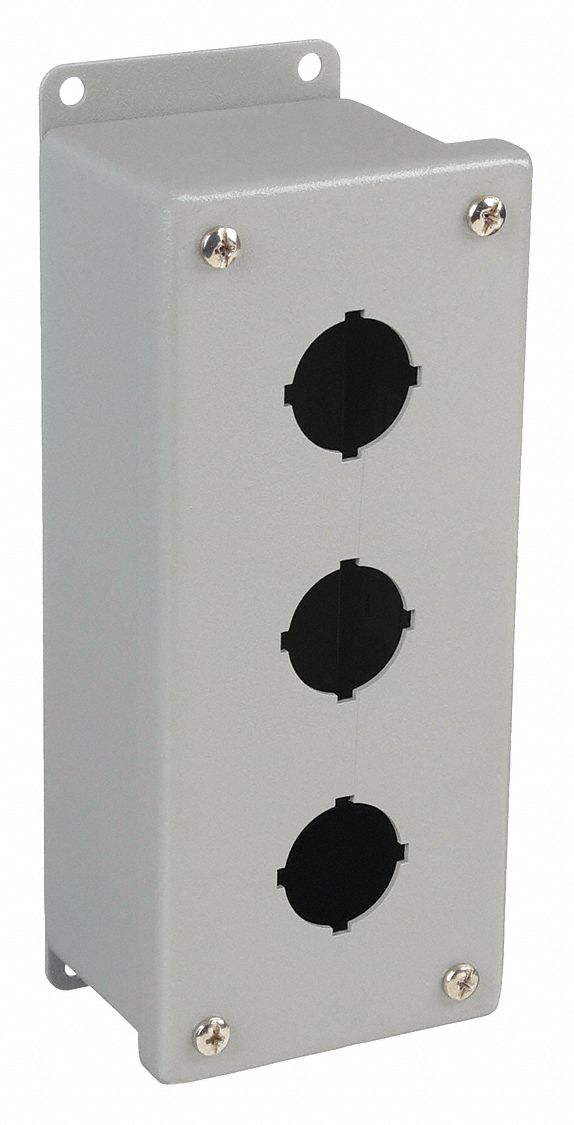

Wiegmann PB3 Push Button Enclosure 30mm 3 Holes

Wiegmann PB3 Push Button Enclosure, 30mm, 3 Holes, Carbon Steel, NEMA 4

UPC: 786725430154 | Harmonization / Schedule B : 7326.90.8695

Country of Origin: Mexico | Shipping Weight: 3.0 lbs

$238.71 - $238.71
$238.71
$238.71 - $238.71
$238.71

Push Button Enclosure, Number of Columns 1, Number of Holes 3, NEMA Rating 12, 13, 4, Conduit Size No Conduit Entrance Holes Provided, Dimensions 8.00 in H x 3.25 in W x 2.81 in D, Hole Size 30 mm, Material Carbon Steel, Height 8 in, Width 3.25 in, Depth 2.81 in, Color Gray, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Type Oil Tight, Mounting Style External Plates, Standards cULus, UL Listed

Number of Columns 1
Material Carbon Steel
Number of Holes 3
NEMA Rating 12, 13, 4
Color Gray
Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket
Type Oil Tight
Standards cULus, UL Listed
Mounting Style External Plates
Cover Type Pushbutton;Screw
Series PB
Finish Type Polyester Powder
Cubic Capacity 192 cu.in
Construction Continuously Welded Seams
Application Designed to hold all standard brands of pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil and water.
Country of Origin Mexico
