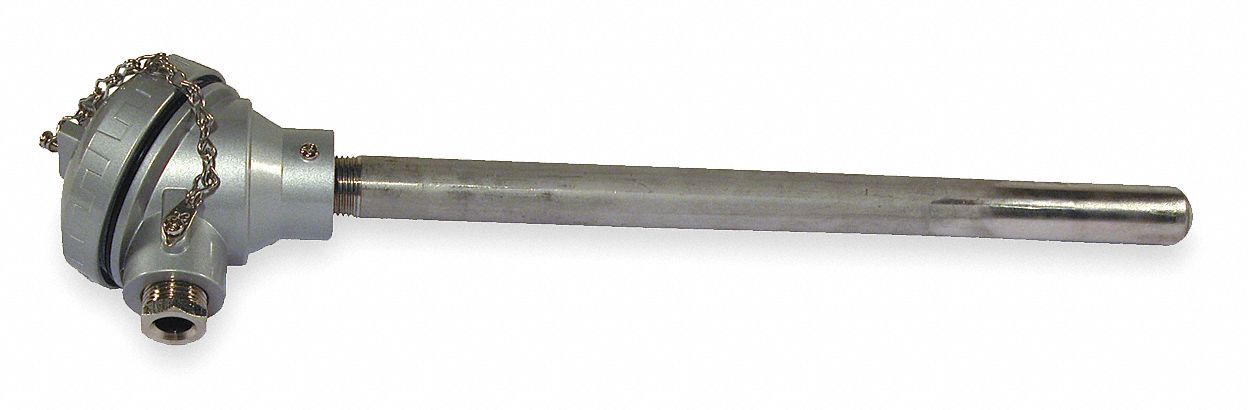

Tempco TCS00016 Heavy Duty Thermocouple

Tempco TCS00016 Heavy Duty Thermocouple, Type K, 32 to 2300 F, 18 in Probe Length, 0.84 in Probe Dia, Inconel Sheath, 1/2 in MNPT

UPC: | Harmonization / Schedule B : 9025.19.8085

Country of Origin: United States | Shipping Weight: 2.75 lbs

$568.16 - $568.16
$568.16
$568.16 - $568.16
$568.16

Tempco TCS00016 Heavy Duty Thermocouple, Type K, grounded junction, designed for measuring extreme temperatures from 32 to 2,300 F (0 to 1,260 C) with +/-2.2 C or +/-0.75% accuracy. Features an 18 in straight Inconel probe sheath (0.84 in diameter), 1/2 in MNPT process mounting thread, and terminal block connector. Suitable for use in appliances, ducts, food and beverage, HVAC, ovens, packaging, and pharmaceutical applications.

Thermocouple Type Type K
Accuracy +/-2.2 C or +/-0.75%
Junction Type Grounded
Minimum Temperature F 32 F
Maximum Temperature F 2,300 F
Minimum Temperature C 0 C
Maximum Temperature C 1,260 C
Probe Length 18 in
Probe Diameter 0.84 in
Probe Tip Diameter 0.84 in
Probe Sheath Material Inconel
Probe Bend Straight
Tip Style Rounded
Process Mounting Connection Thread
Process Mounting Thread Size 1/2 in MNPT
Connector Type Terminal Block
Maximum Wire Gauge 0.25 mm
For Media Type Gases, Air, Liquids and Gels, Solids
