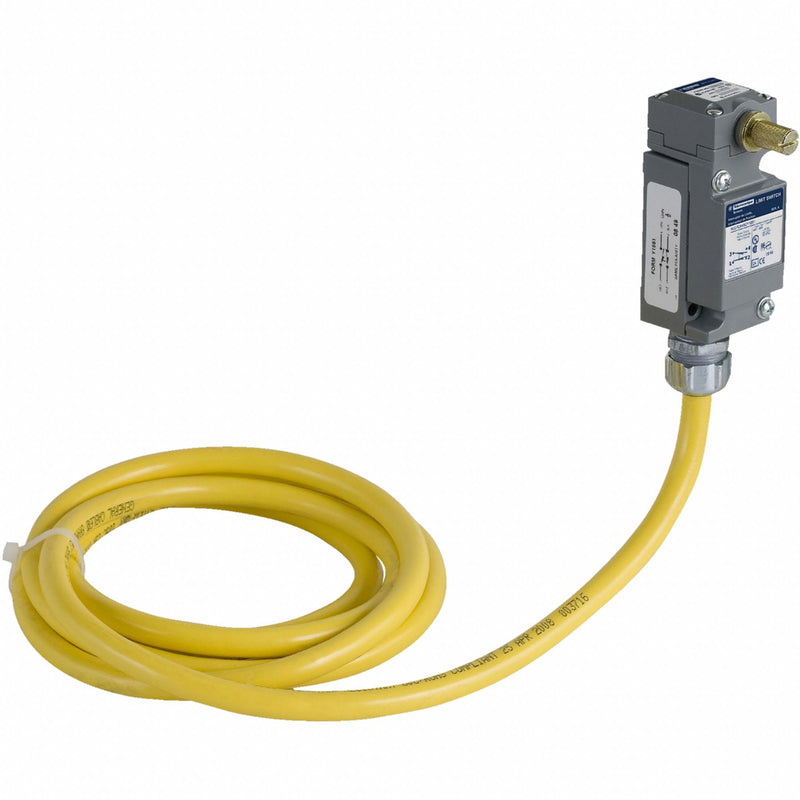

Telemecanique Sensors 9007C54B2Y1851 Plug-In Limit Switch

Telemecanique Sensors 9007C54B2Y1851 Plug-In Limit Switch, Rotary, No Lever, 1NC/1NO, 10 A, 600V

UPC: 785901530800 | Harmonization / Schedule B : 8536.50.9055

Country of Origin: Mexico | Shipping Weight: 2.95 lbs

$407.25 - $407.25
$407.25
$407.25 - $407.25
$407.25

Plug-In Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 1NC/1NO, Body Height - Limit Switch 2.5 in, Body Width - Limit Switch 0.83 in, Body Depth - Limit Switch 1.14 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, Mounting - Limit Switch Surface

Basic Actuator Style - Limit Switch Rotary
Actuator Style - Limit Switch No Lever, Rotary
Contact Form- Switches 1NC/1NO
Actuator Location - Limit Switch Side
AC Contact Rating - Limit Switch 10A at 600V
DC Contact Rating - Limit Switch 10A at 600V
Body Style - Limit Switch Miniature
Mounting - Limit Switch Surface
Amps 10
Boot Sealed Actuator (Limit Switch) No
Body Style (Limit Switch) Miniature
AC Contact Rating 10 A @ 600 V
Electrical Connection Pre-Wired Cable
Mounting Hole - Limit Switch (2) 0.20 in dia
Operating Temp. Range -20 Degrees to 185 Degrees F
Boot Sealed Actuator - Limit Switch No
Basic Actuator Style (Limit Switch) Rotary
Mounting Hole Spacing - Limit Switch 2.35 in x 1.17 in
Contact Form 1NO/1NC
Series 9007C
Actuator Location (Limit Switch) Side
IP Rating IP67
Wiring Entry Potted Cable
Travel Total Travel 90 Degrees
Limit Switch Style Heavy Duty Limit Switch
Mounting Hole Pattern - Limit Switch 2 Hole Diagonal
NEMA Rating 1, 12, 13, 2, 4, 6, 6P
Actuator Location Side
Body Material Zinc
Standards C22-2-14-95, CE, CSA, EN 60947-1, EN 60947-5-1, IEC 60947, NEMA 250, UL Listed, UL 508
Voltage Rating 600VAC/DC
Actuator Style (Limit Switch) Rotary, No Lever
Movement CCW, CW
Actuator Style Rotary Head, No Lever
Stem Thread - Limit Switch No Stem
Operating Force 4.0 in-lb
Contact Form - Limit Switch 1NC/1NO
DC Contact Rating 10 A @ 600 V
Special Features lateral approach, 1 or 2 programmable direction
Head Material zinc
Contact Material silver contacts
Short Circuit Protection 10 A CC non-time delay
Actuation Type from left and right || CW and CCW
Shock Resistance 60 gn 9 ms IEC 60068-2-27
Mechanical Durability 10000000 cycles
Vibration Resistance 25 gn 10-150 Hz)IEC 60068-2-6
Weight 1.25 lb(US)
Electrical Durability 1000000 cycles
Head Type rotary head
Contact Action snap action
Body Configuration Plug-In
Total Travel 90 Degrees
Operating Temperature - Minimum -20 Degrees F
Mounting Hole Horizontal Center to Center Distance 30 mm
Directional Movement CCW/CW
Number of Mounting Holes 2
Includes Actuator No Actuator Included
NEMA Enclosure Rating 1, 12, 13, 2, 4, 6, 6P
Mounting Hole Vertical Center to Center Distance 60 mm
Operating Temperature - Maximum 185 Degrees F
Resistance Properties Shock Resistant, Vibration Resistant
Mounting Style Surface
Boot Sealed Actuator No Boot Included
Operating Torque - Maximum 4 in-lb
Number Of Poles 1
Country of Origin Mexico
