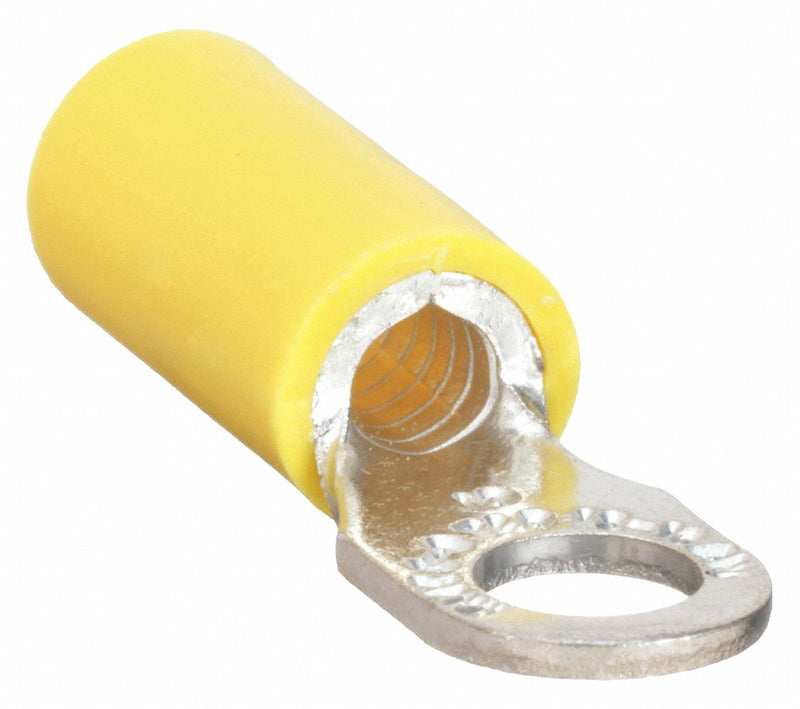

Sta-Kon 10RC-516 Ring Terminal Yellow 5/16 in Stud

Sta-Kon 10RC-516 Ring Terminal, Yellow, Vinyl Insulated, 5/16 in Stud, 12-10 AWG, 600V

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 0.5 lbs

$124.70 - $124.70
$124.70
$124.70 - $124.70
$124.70

Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.5 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed E9809, Barrel Length 0.55 in, Barrel Style Brazed Serrated, Compatible with Product Type Copper Conductors, Hole Spacing 0.37 in

Terminal Shape Standard Ring Tongue
Termination Style Crimp Termination Only
Insulation Color Yellow
Insulation Coverage Partial Coverage
Insulation Type Vinyl
Contact Material Copper
Maximum Voltage 600 V
Maximum Operating Temperature 221 Degrees F
Standards CSA Certified, UL Listed E9809
Terminal Type Standard
Seam Brazed
Wire Range 12 to 10 AWG
Connection Type Crimp
Contact Finish Tin
Hole Spacing 0.37 in
Barrel Style Serrated Barrel
Compatible with Product Type Copper Conductors
Country of Origin United States
