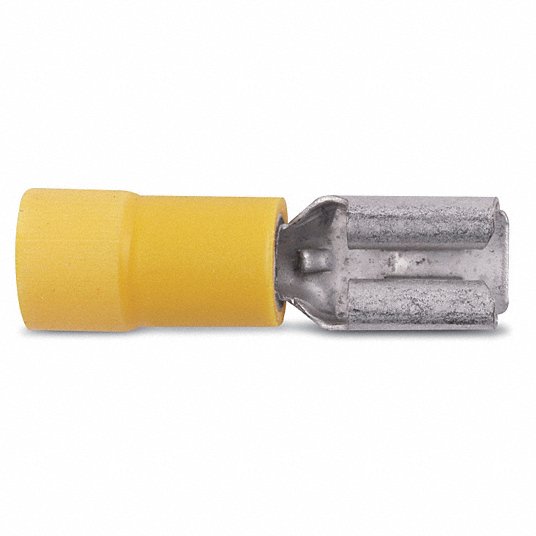

Sta-Kon 10RC-250F Wire Disconnect Female Socket, Yellow, Vinyl, Partial Coverage, 12 AWG – 10 AWG Wire Size

Sta-Kon 10RC-250F Wire Disconnect Female Socket, Yellow, Vinyl, Partial Coverage, 12 AWG – 10 AWG Wire Size

UPC: 786210800523 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 0.28 lbs

$112.19 - $112.19
$112.19
$112.19 - $112.19
$112.19
Wire Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Quick Disconnect, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Temperature 221 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 300 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Brazed, Standards UL E66716
Type Vinyl Insulated Female Disconnect
Disconnect Type Female – 250 Series
Terminal Type Socket
Terminal Series RC
Connection Type Crimp
Termination Style Crimp
Wire Range 12–10 AWG
AWG Range 12–10
Insulation Partial
Insulation Coverage Partial Coverage
Insulation Type Vinyl
Insulation Material Vinyl / Polyvinyl Chloride (PVC)
Insulation Color Yellow
Color Yellow
Material (Terminal) Brass
Connection Material Brass
Contact Material Copper
Contact Finish Tin
Finish Electro Tin-Plated
Seam Brazed
Seam Style Brazed
Barrel Style Funnel Entry
Maximum Voltage 300 V
Voltage Rating 600 V
Maximum Operating Temperature 221°F (105°C)
Temperature Rating 105°C
Flammability Rating UL 94 V-0
UL 94 Flammability Rating Not Rated
Standards UL E66716
RoHS Compliant No
Maximum Insulation Diameter 0.25 in
Dimension A 1.03 in
Dimension B 0.29 in
Features Unique female disconnect construction offers long-term dependability; Brazed seam serrated barrel provides maximum tensile strength
Special Features Brazed seam serrated barrel for maximum tensile strength; Long-term dependability
Application Tools WT145C, WT2000, WT112M, ERG4001, ERG4003
Recommended Tool ERG4001
Alternate Package Qty RC257
