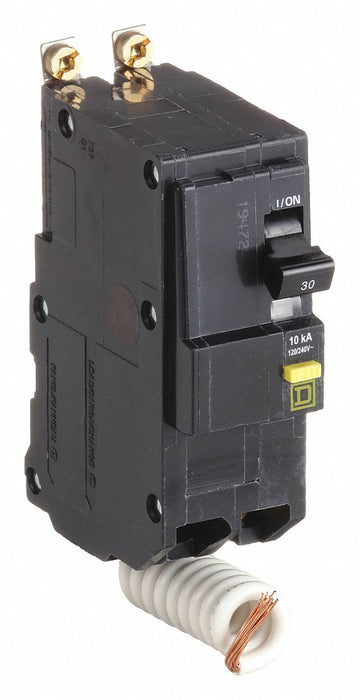

Square D QOB230GFI GFCI Miniature Circuit Breaker

Square D QOB230GFI Miniature Circuit Breaker, GFCI, 30A, 120/240V AC, 2 Poles, Bolt On

UPC: 785901563037 | Harmonization / Schedule B : 8536.20.0020

Country of Origin: Mexico | Shipping Weight: 0.95 lbs

$622.44 - $622.44
$622.44
$622.44 - $622.44
$622.44

Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Ground Fault Circuit Interrupter, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NQ, QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Pressure Plate, Frame Size 100A/QO, Length 4.12 in, Width 1.5 in

Series QO
Amps 30A
Number of Poles 2
AC Voltage Rating 120/240V AC
Circuit Breaker Type Ground Fault Protecting Class A 6 mA
Phase 1
Circuit Breaker Actuator Paddle
Circuit Breaker Mounting Style Bolt On
Max. AIR Rating 10kA at 120/240V AC
Terminal Connection Pressure Plate
DC Voltage Rating Not Rated
Curve Type A
Standards UL Listed
For Use With NQ Panelboards
Features Mercury Free
Interrupt Rating 10 kA at 120/240V AC
Max. Operating Temp. 104 Degrees F
Min. Operating Temp. 77 Degrees F
Compatible Panelboard/Load Center Series NQ, QO
Voltage 120/240 VAC
CAD Available Yes
Trip Type Thermal Magnetic, Trip Free
Instantaneous Trip Trip Free
Country of Origin Mexico
