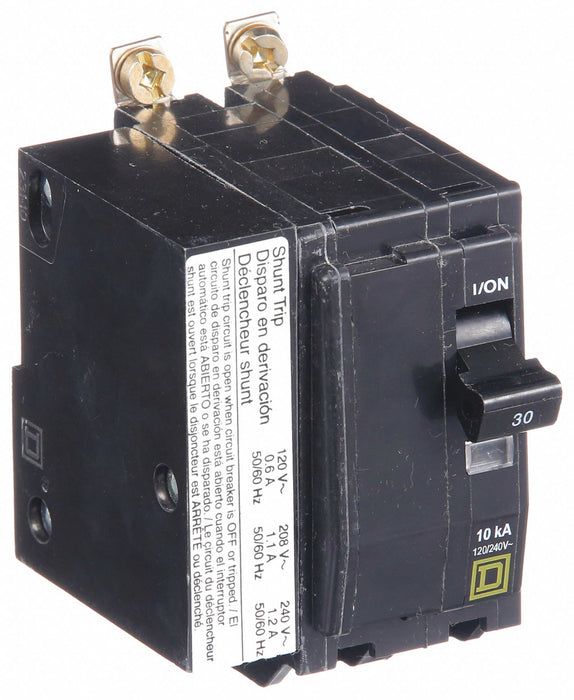

Square D QOB2301021 Shunt Trip Miniature Circuit Breaker

Square D QOB2301021 Miniature Circuit Breaker, Shunt Trip, 30A, 120/240V AC, 2 Poles, Bolt On

UPC: 785901494300 | Harmonization / Schedule B : 8536.20.0020

Country of Origin: Mexico | Shipping Weight: 0.90 lbs

$390.61 - $390.61
$390.61
$390.61 - $390.61
$390.61

Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Shunt Trip, Number of Poles 2, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Pressure Plate, Frame Size 100A/QO, Length 3 in, Width 2.25 in, Depth 2.91 in, Min. Operating Temp. 77 Degrees F

Series QO
Amps 30A
Number of Poles 2
AC Voltage Rating 120/240V AC
Circuit Breaker Type Standard
Phase 1
Circuit Breaker Actuator Paddle
Circuit Breaker Mounting Style Bolt On
Max. AIR Rating 10kA at 120/240V AC
Trip Type Shunt Trip
Terminal Connection Pressure Plate
DC Voltage Rating 48V DC
Standards UL Listed
For Use With NQ Panelboards
Application HACR rated Applications
Features Mercury Free
Interrupt Rating 10 kA at 120/240V AC
Compatible Panelboard/Load Center Series QO
Max. Operating Temp. 104 Degrees F
Min. Operating Temp. 77 Degrees F
Voltage 120/240 VAC
Country of Origin Mexico
