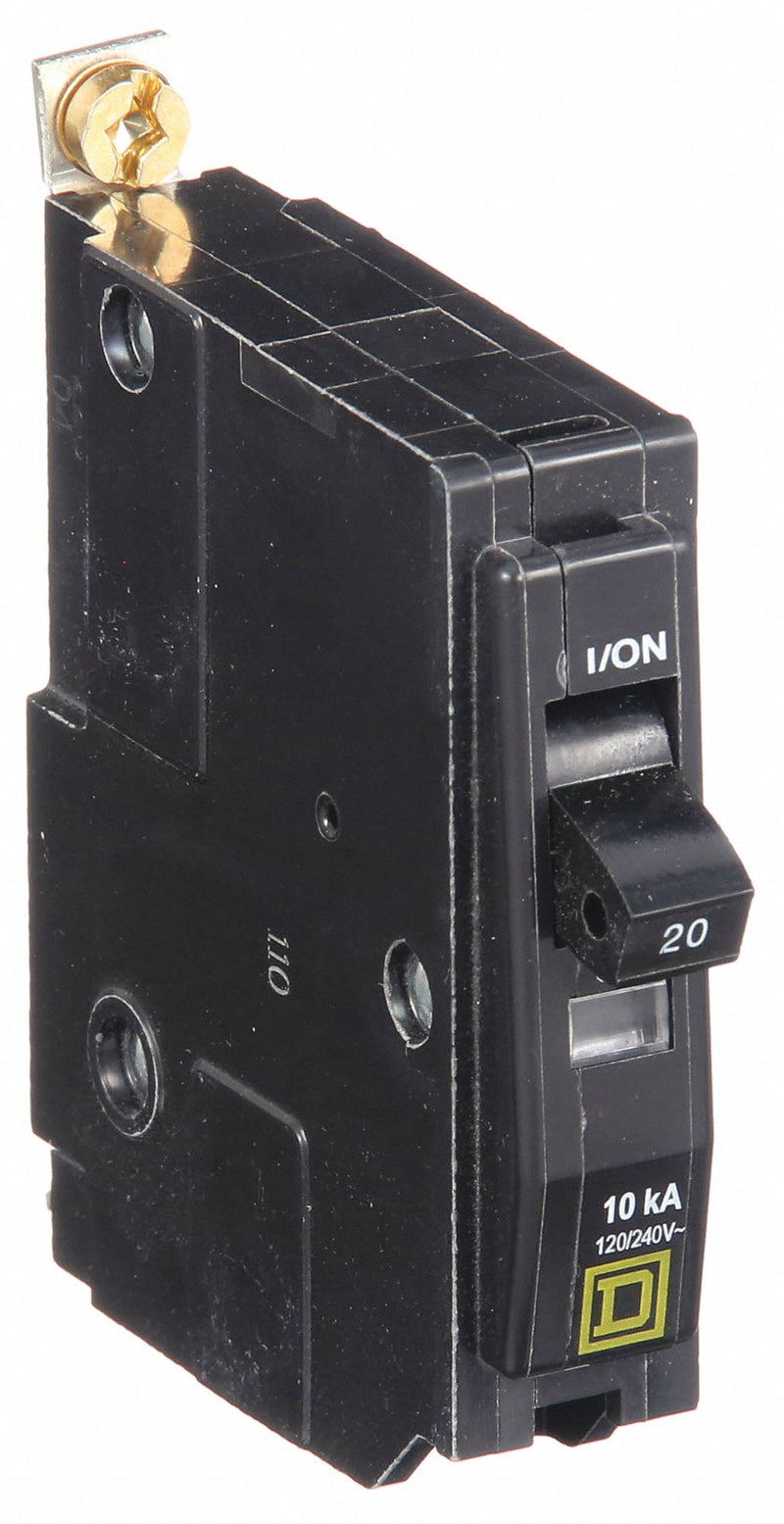

Square D QOB120HID Miniature Circuit Breaker, 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC, 1 Poles

Square D QOB120HID Miniature Circuit Breaker, 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC, 1 Poles

UPC: 785901543893 | Harmonization / Schedule B : 8536.20.0020

Country of Origin: South Korea | Shipping Weight: 0.25 lbs

$63.38 - $63.38
$63.38
$63.38 - $63.38
$63.38

Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type High Intensity Discharge, Number of Poles 1, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Pressure Plate, Frame Size 100A/QO, Length 3 in, Width 0.8 in, Depth 2.9 in

Frame Size 100A/QO
Width 3/4 in
Depth 2.91 in
Height 2.99 in
Max. Wire Size 8 AWG
Min. Wire Size 14 AWG
Length 3 in
CAD Available Yes
Series QO
Amps 20A
Number of Poles 1
AC Voltage Rating 120/240V AC
Circuit Breaker Type High Intensity Discharge
Phase 1
Circuit Breaker Actuator Paddle
Circuit Breaker Mounting Style Bolt On
Max. AIR Rating 10kA at 120/240V AC
Trip Type Thermal Magnetic, Trip Free
Instantaneous Trip Trip Free
Terminal Connection Pressure Plate
DC Voltage Rating 48V DC
For Use With Square D NQOD Panelboards
Standards UL Listed
Application Switching Duty rated Applications
Features Mercury Free
Interrupt Rating 10 kA at 120/240V AC
Max. Operating Temp. 104 Degrees F
Compatible Panelboard/Load Center Series QO
Min. Operating Temp. 77 Degrees F
Voltage 120VAC
Country of Origin Korea, Republic of
