Square D QO3100BNRB Circuit Breaker Enclosure 3 Spaces, 100A, Surface Mounting, Outdoor - KVM Tools Inc.KV2DP90

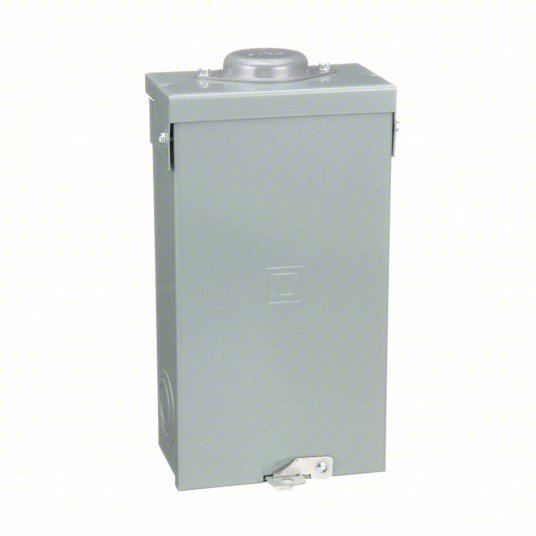

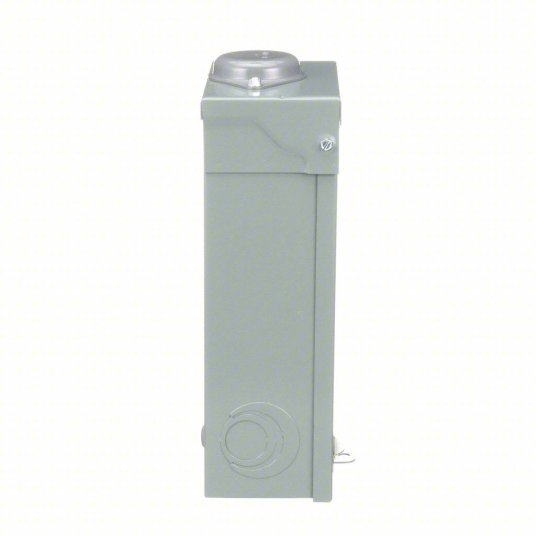

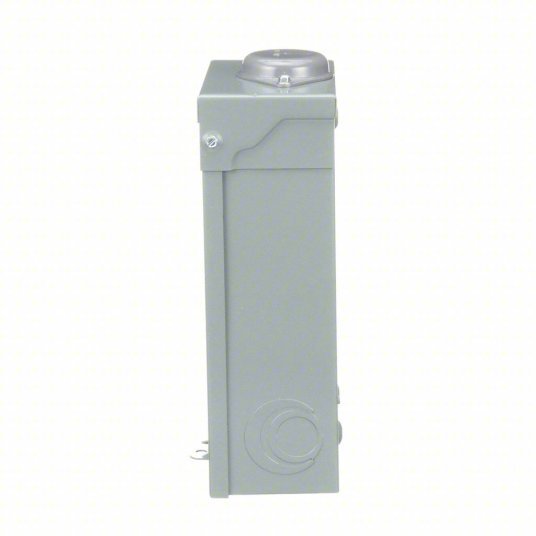

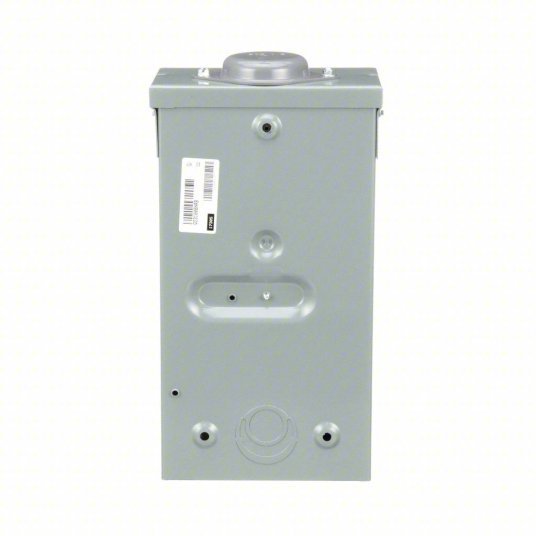

Square D QO3100BNRB Circuit Breaker Enclosure 3 Spaces, 100A, Surface Mounting, Outdoor

UPC: 785901051770 | Harmonization / Schedule B : 8537.10.9050

Country of Origin: | Shipping Weight:

$281.55 - $281.55
$281.55
$281.55 - $281.55
$281.55
Circuit Breaker Enclosure, Material Steel, NEMA Rating 3R, Exterior Height 13.19 in, Exterior Width 6.93 in, Exterior Depth 4.12 in, For Use With Square D QO Circuit Breakers, Enamel Finish, Mounting Style Surface, 100 A Amps, Number of Spaces 3, Location Outdoor, Gray, Max. Operating Temp. 104 Degrees F, Min. Operating Temp. 23 Degrees F, Conduit Provision 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, Cover Attachment Style Top Hinge, Cover Closure Method Latch, Recommended Service Ground Kit Part # PKOGTA2
Main Circuit Breaker or Main Lug Main Lug
Number of Spaces 3
Amps 100A
Phase 3
Recommended Surface Cover Included
Enclosure Material Steel
Enclosure NEMA Rating 3R
For Use With Square D QO Circuit Breakers
Finish Enamel
Color Gray
Mounting Style Surface
Location Outdoor
Recommended Service Ground Kit PKOGTA2
Cover Attachment Style Top Hinge
Max. Operating Temp. 104 Degrees F
Cover Closure Method Latch
Conduit Provision 1/2, 3/4, 1, 1 1/4, 1 1/2, 2
Min. Operating Temp. 23 Degrees F
Cover Type Surface Cover
Ambient Air Temperature For Operation -5 DegC || 40 DegC
