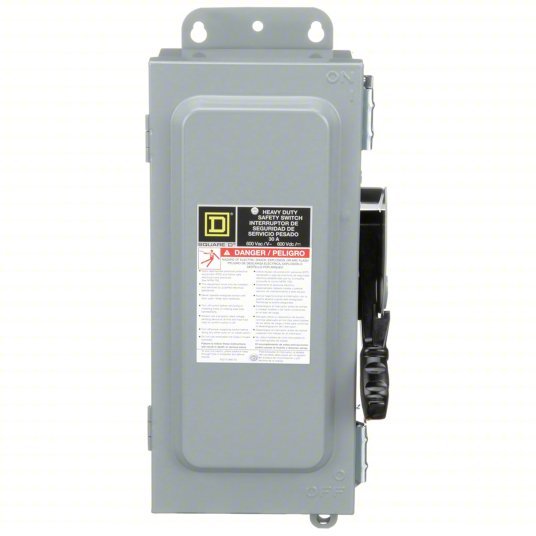

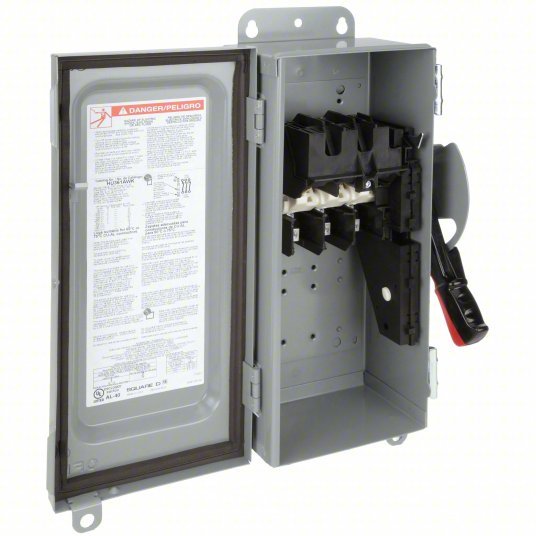

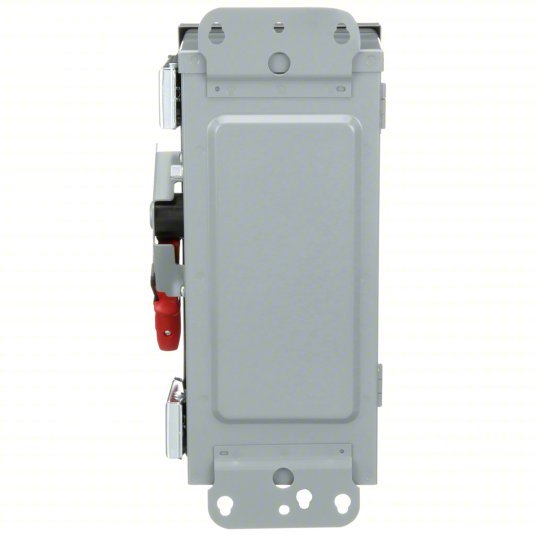

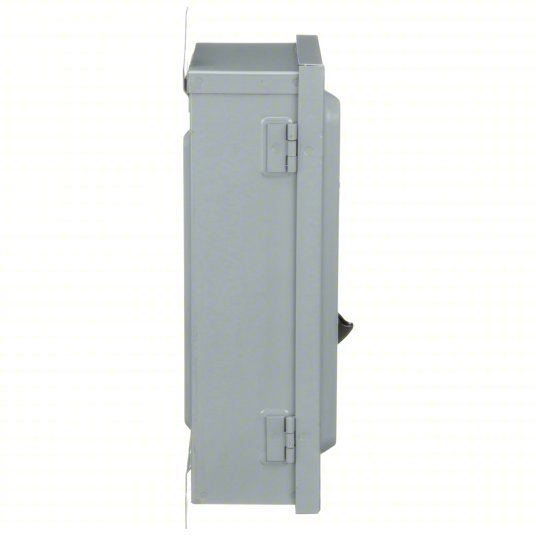

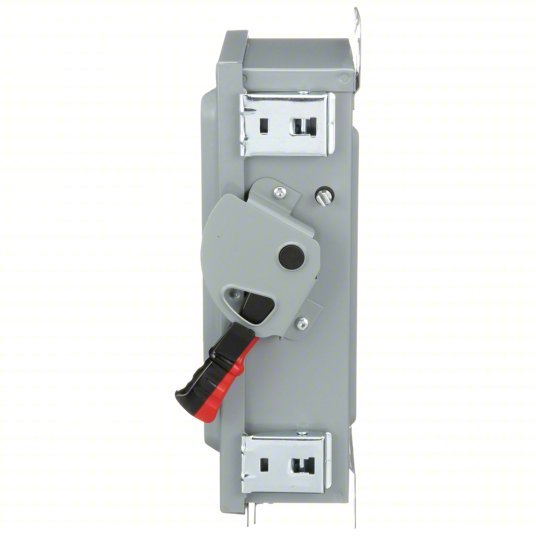

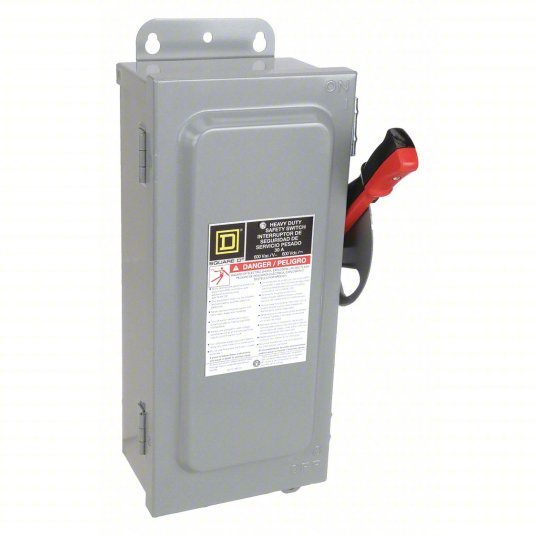

Square D HU361AWK Safety Switch Non-Fusible, 30 A, Three Phase, 600V AC, Galvanized Steel, Indoor/Outdoor

Heavy Duty Safety Switches are needed when maximum performance and continuity of service is essential for commercial and industrial applications. Equipped with fuses they can provide over-current and short-circuit protection.

• Mounting Type: Surface
• Wire Size: #12 to #6 AWG(Al) or #14 to #6 AWG(Cu)
• Type of Duty: Heavy Duty
• Number of Poles: 3-Pole
• Maximum Voltage Rating: 600V
• Terminal Type: Lugs
• Action: Single Throw
• Ampere Rating: 30A
• Approvals: UL Listed
• Electrical Interlock: None
• Enclosure Type: Rainproof Sleet/Ice proof and Dust tight (Indoor/Outdoor)
• Enclosure Material: Galvannealed Steel
• Enclosure Rating: NEMA 3R/12
• Factory Installed Neutral: No
• Short Circuit Current Rating: 200kA(max)
• Disconnect Type: Non-Fusible
