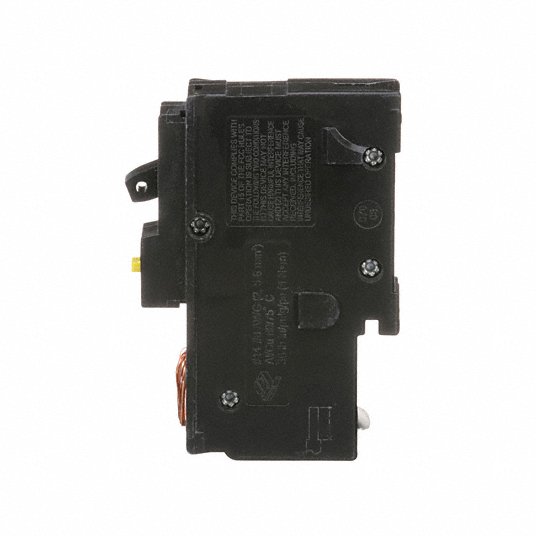

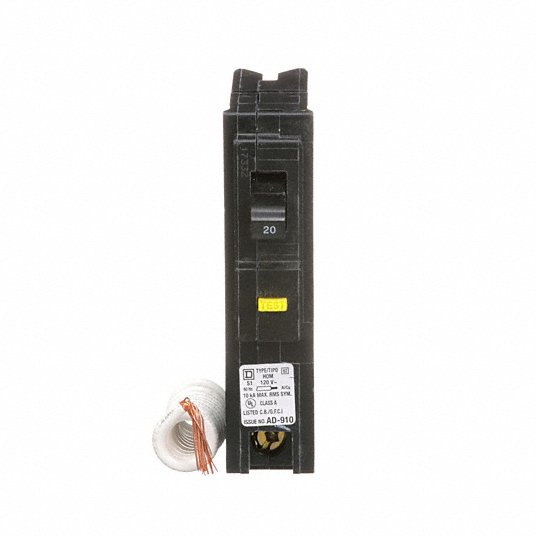

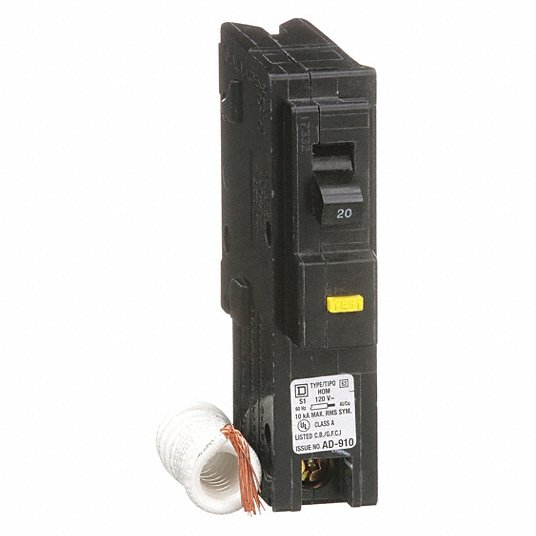

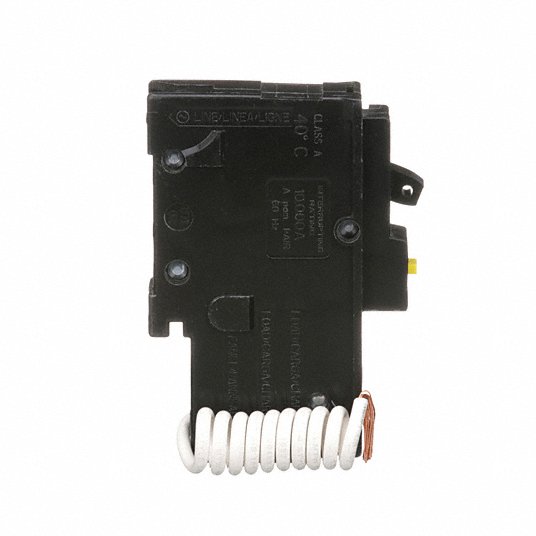

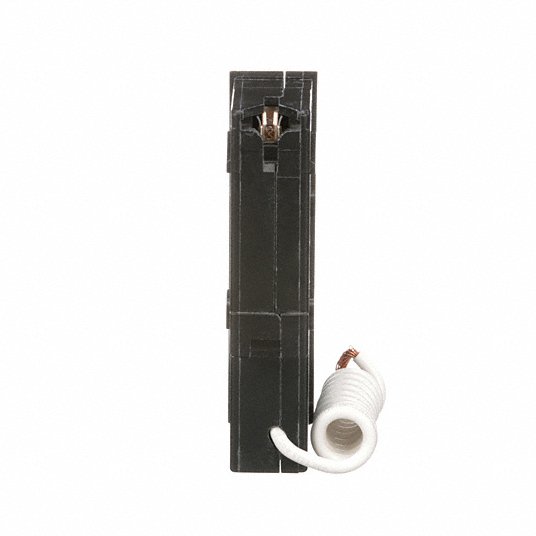

Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120V AC, Circuit Breaker Type Ground Fault Circuit Interrupter (Class A - 5mA), Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase Single, Series HOM, Max. AIR Rating 10kA at 120V AC, For Use With Homeline Load Center, Terminal Connection Screw Clamp, Frame Size 100A/HOM, Length 3.13 in, Width 1 in, Depth 2.98 in
| Series |
HOMELINE |
| Amps |
20A |
| Number of Poles |
1 |
| AC Voltage Rating |
120V AC |
| Circuit Breaker Type |
Ground Fault Protecting Class A 6 mA |
| Phase |
1 |
| Circuit Breaker Actuator |
Paddle |
| Circuit Breaker Mounting Style |
Plug In |
| Max. AIR Rating |
10kA at 120V AC |
| Terminal Connection |
Screw Clamp |
| DC Voltage Rating |
Not Rated |
| Curve Type |
A |
| Standards |
CSA Certified, HACR, UL Listed |
| For Use With |
Homeline Load Center, All-in-Ones, CSED, Meter Main, Homeline Circuit Breaker Accessory |
| Features |
Mercury Free |
| Application |
HACR rated Applications |
| Min. Operating Temp. |
77 Degrees F |
| Max. Operating Temp. |
104 Degrees F |
| Compatible Panelboard/Load Center Series |
HOM |
| Certifications |
UL Listed |
| Tightening Torque |
36.29 lbf.in (4.1 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 10) |
| Ambient Air Temperature For Operation |
104°F (40°C) |
| Short Circuit Current Rating |
10 kA |
| Ratings |
HACR rated |
| Voltage |
120/240 VAC |
