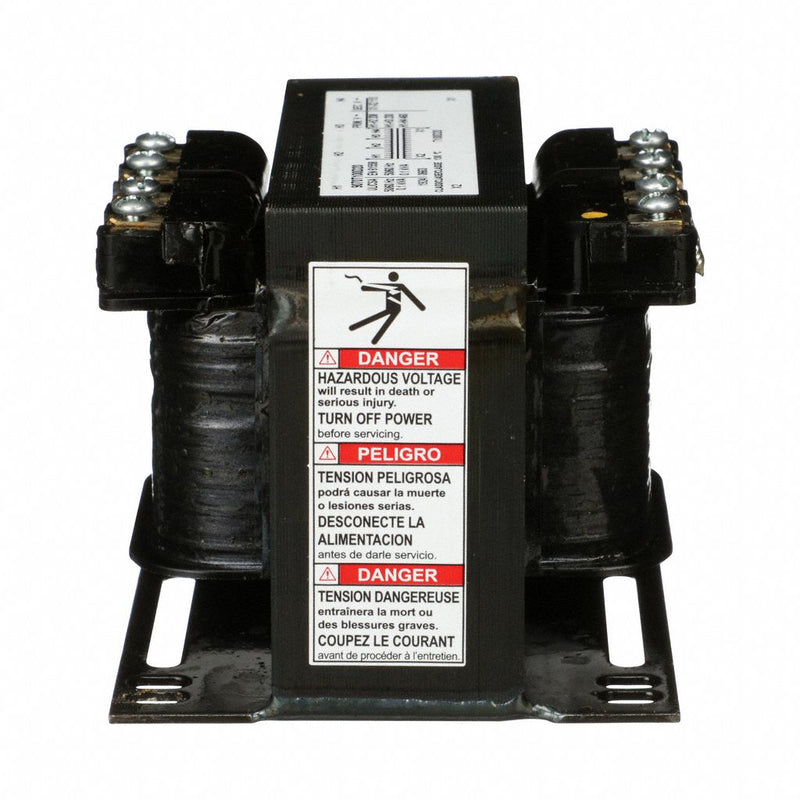

Square D 9070T100D20 Control Transformer 100 VA

Square D 9070T100D20 Control Transformer, 100 VA, 208/240/480V AC to 120V AC, 1-Phase, Foot Mount

UPC: 785901905059 | Harmonization / Schedule B : 8504.31.4065

Country of Origin: United States | Shipping Weight: 5.55 lbs

$339.91 - $339.91
$339.91
$339.91 - $339.91
$339.91

Control Transformer, Input Voltage - Transformer 208V AC, 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 100 VA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 55 Degrees C, Enclosure Finish Epoxy Resin Varnish

Input Voltage - Transformer 208/240/480V AC
Output Voltage 120V AC
Power Rating 100 VA
Phase 1
Mounting - Transformer Foot
Hz - Electrical 50/60 Hz
NEMA Enclosure Rating Not Rated
Enclosure Style - Transformer Open
Protective Device None
Standards CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Fused No
Enclosure Finish Epoxy Resin Varnish
Green Environmental Attribute Mercury Free; Pvc Free
Includes 24 in Pre-Wired Primary and Secondary Leads
Secondary Connection Screw clamp terminals
Primary Connection Screw clamp terminals
Insulation Max. Temp. 105 °C
Enclosure Type Open
Winding Material - Transformer Copper
Temperature Rise 55°C
Country of Origin United States
