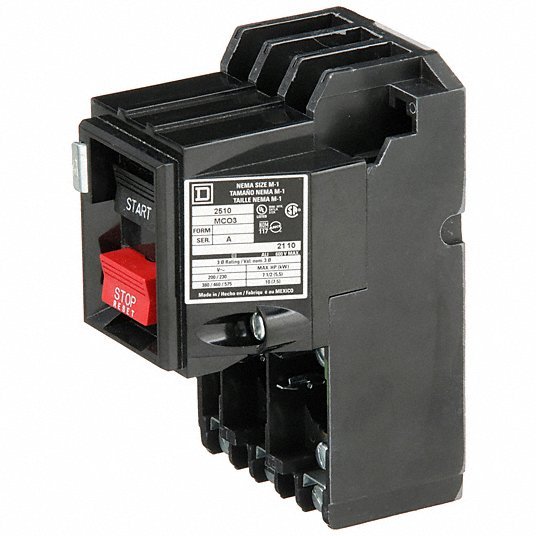

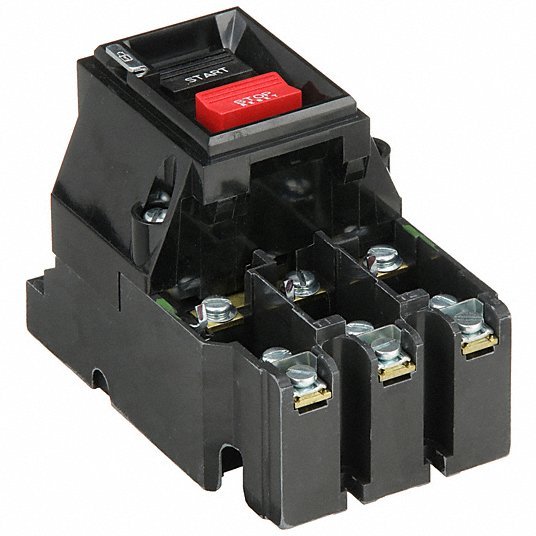

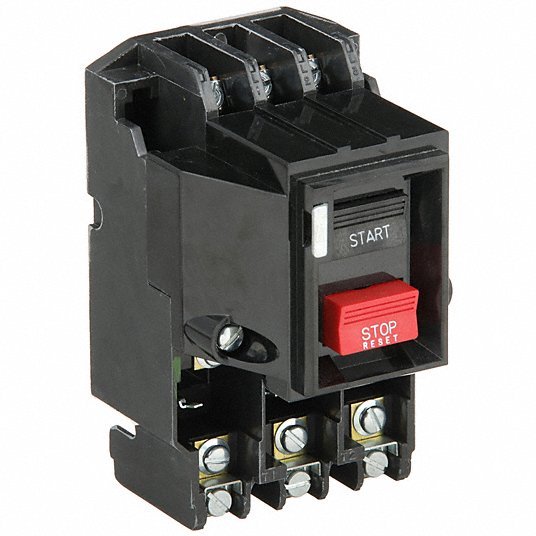

Square D 2510MCO3 Manual Motor Starter Non-Reversing, 3 Poles, 27 A, NEMA Size M-1, Thermal Protection, SQR1

Manual Motor Starter, NEMA Size M-1, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 27 A, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 10 hp, Series Class 2510 M Series, Horsepower @ Three Phase - 600V AC 10 hp, Maximum Overload Relay Current Setting Not Applicable, Minimum Overload Relay Current Setting Not Applicable, NEMA Enclosure Rating No Enclosure, Number of Required Thermals 3

Number of Poles	3
Operator	Push Button
Phase	3
Number of Required Thermals	3
Current AC	27 A
Series	Class 2510 M
Standards	CSA LR60905, E42243 CCN NLRV, UL Listed
Description/Special Features	Class 10 Ambient-Compensated Thermal Overload Relay
Pilot Light	No
HP @ 3 Phase - 575V	10 hp
Thermal Unit Code	N1
HP @ 3 Phase - 460-575V	10 hp
Phase Loss Sensitivity	No
Thermal Overload Type	Melting Alloy
Motor Starter Type	non reversing
Includes Pilot Light	No
Horsepower @ Three Phase - 600V AC	10 hp
Starter Style	NEMA
NEMA Enclosure Rating	No Enclosure
Horsepower @ Three Phase - 480V AC	10 hp
Terminal Connection Type	Screw Clamp Terminals
Maximum Voltage Rating	600V AC
Overload Protection Type	Thermal
Horsepower @ Three Phase - 240V AC	7 1/2 hp
Wire Gauge	AWG 14 to AWG 8 copper
