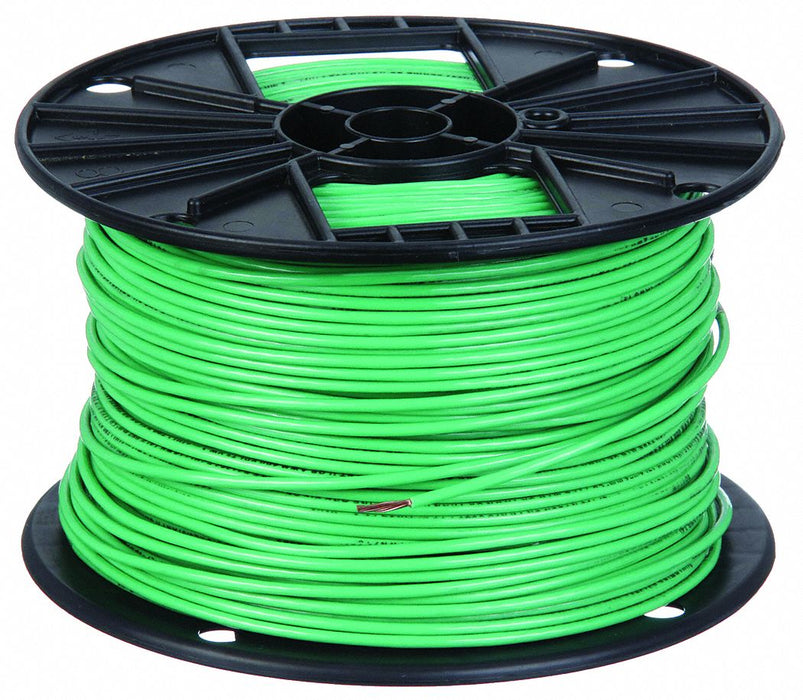

Southwire 22977301 Building Wire, Copper, 10 AWG, 1 Conductor, Stranded, Green, 500 ft, THHN

Southwire 22977301 Building Wire, Copper, 10 AWG, 1 Conductor, Stranded, Green, 500 ft, THHN

UPC: 032886230400 | Harmonization / Schedule B : 8544.49.9000

Country of Origin: United States | Shipping Weight: 20 lbs

$313.00 - $313.00
$313.00
$313.00 - $313.00
$313.00

Building Wire, Trade Designation THHN, Wire Size 10 AWG, Wire Color Green, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.16 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 19

Trade Designation THHN
Conductor Material Copper
Number of Conductors 1C
Wire Color Green
Jacket Color Green
Jacket Material Nylon
Conductor Design Stranded
Insulation Material PVC
Voltage 600V AC
Temp. Rating 194°F
Standards UL Listed, E34382
Max. Amps 30
Stranding 19
Packaging Spool
Application Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Construction Southwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Applications THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
Allowable Ampacity At 75C 30
Temperature Rating - Maximum Wet 167 Degrees F
Number of Strands 19
Conductor Insulation Color Green
Conductor Insulation Material Nylon, PVC
Temperature Rating - Maximum Dry 194 Degrees F
Fire Resistance Rating Not Rated
