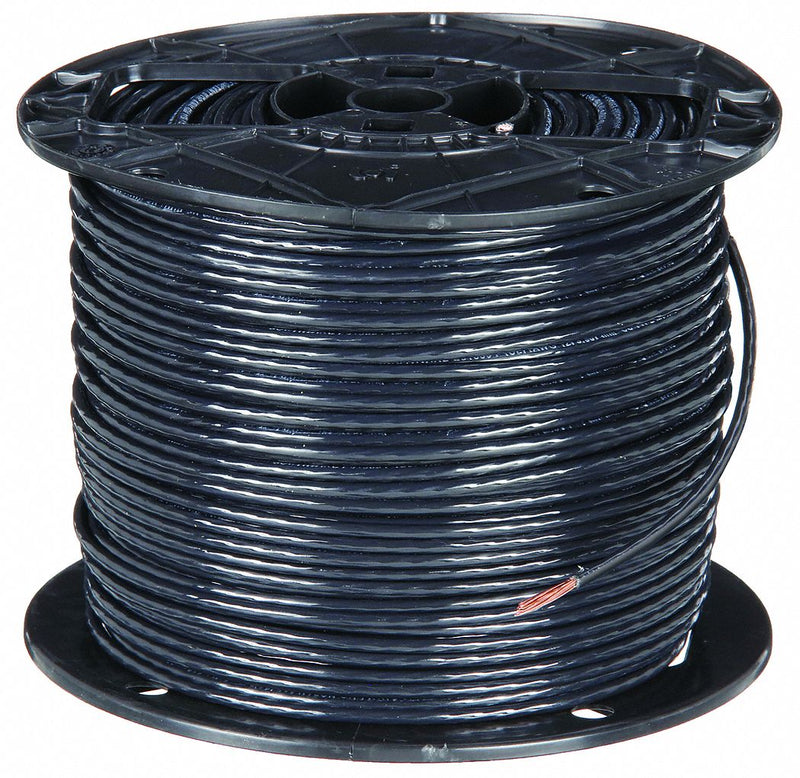

Southwire 22964101 THHN Copper 12 AWG Stranded Black 500 ft Building Wire

Southwire 22964101 THHN Building Wire, Copper, 12 AWG, 1 Conductor, Stranded, Black, 500 ft, 600V

UPC: 032886229008 | Harmonization / Schedule B : 8544.49.2000

Country of Origin: United States | Shipping Weight: 13.0 lbs

$189.73 - $189.73
$189.73
$189.73 - $189.73
$189.73

This Southwire THHN Building Wire is perfect for running electrical wiring in your home. The building wire has a 12 AWG size and can be used for 600V AC voltage. It comes with a length of 500 ft and black nylon jacket. This black building wire is made of stranded conductors, making it highly flexible. Designed to protect against corrosion, the black conductor offers maximum durability. The Southwire THHN Building Wire is the perfect choice for your next electrical project.

Trade Designation THHN
Conductor Material Copper
Number of Conductors 1C
Wire Color Black
Jacket Color Black
Jacket Material Nylon
Conductor Design Stranded
Insulation Material PVC
Voltage 600V AC
Temp. Rating 194°F
Standards UL Listed, E34382
Stranding 19
Packaging Spool
Max. Amps 20
Application Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Fire Resistance Rating Not Rated
Temperature Rating - Maximum Dry 194 Degrees F
Conductor Insulation Material Nylon, PVC
Number of Strands 19
Conductor Insulation Color Black
Temperature Rating - Maximum Wet 167 Degrees F
Country of Origin United States
