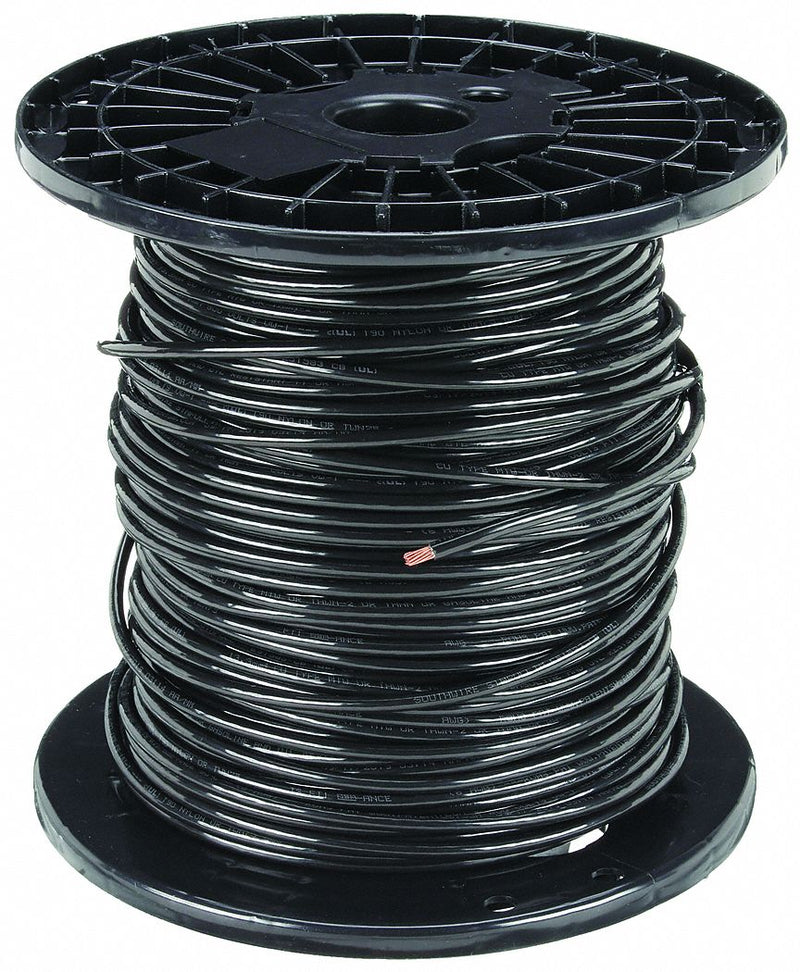

Southwire 20488312 SIMpull THHN Copper 8 AWG Stranded Black 500 ft Building Wire

Southwire 20488312 SIMpull THHN Building Wire, Copper, 8 AWG, 1 Conductor, Stranded, Black, 500 ft, 600V

UPC: 032886231001 | Harmonization / Schedule B : 8544.49.2000

Country of Origin: United States | Shipping Weight: 32.25 lbs

$485.89 - $485.89
$485.89
$485.89 - $485.89
$485.89

This Southwire Building Wire is an 8 AWG wire with a 500 ft length and 600V AC voltage. It is suitable for use in residential, commercial and industrial applications. The black nylon jacket on this building wire protects it from abrasion and moisture. This THHN wire has a stranded conductor design that makes it more flexible than solid conductors. Its black color offers high visibility so you can quickly find the wires you need in your installation. The THHN wire meets UL standards for both underground and overground installations. This Southwire Building Wire is an excellent choice for your next project because of its quality construction, durability and flexibility.

Trade Designation THHN
Conductor Material Copper
Number of Conductors 1C
Wire Color Black
Jacket Color Black
Jacket Material Nylon
Conductor Design Stranded
Insulation Material PVC
Voltage 600V AC
Temp. Rating 194°F
Standards UL Listed
Max. Amps 50
Stranding 19
Packaging Spool
Application Wet Locations and Locations Exposed to Oil (Below 75°C)
Construction Southwire® SIMpull THHN® copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull® Technology. Marked as THWN-2.
Applications Southwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant. THWN-2- Wet or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
Allowable Ampacity At 75C 50
Allowable Ampacity At 90C 55
Conductor Insulation Material Nylon, PVC
Fire Resistance Rating Not Rated
Temperature Rating - Maximum Wet 167 Degrees F
Number of Strands 19
Conductor Insulation Color Black
Series Simpull(R)
Temperature Rating - Maximum Dry 140 Degrees F
Country of Origin United States
